Industrial Steel / Hot Galvanized Window Cleaning Platform
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHANDONG, CHINA |
|---|

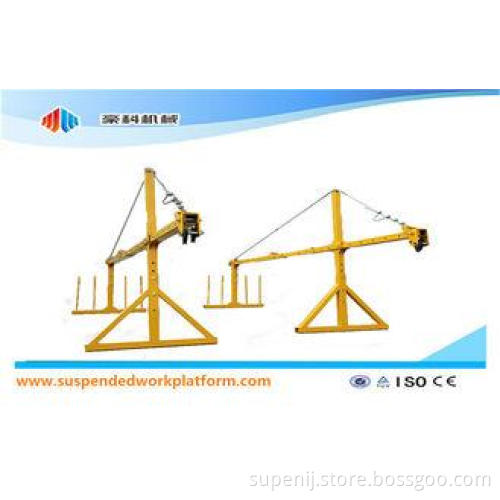

Steel / Hot Galvanized / Aluminium Alloy Safe Suspended Gondola For Aerial Working
Quick Detail:
1. Model No.: ZLP500, ZLP630 , ZLP800, ZLP1000
2. Brand Name: HAOKE
3. Material: Steel / Aluminum
4. Appearance: Plastic Spray Painted / Hot Galvanized
5. Lifting Height: Maximum 300 Mts
6. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ
7. Diameter of steel rope: 8.3mm 8.6mm 9.1mm
8. Motor rotation speed(r/min): 1420
Applications:
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Specifications:
| Property Model No. | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9~11 | 9~11 | 8~10 | 8~10 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | (2000×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.6 | 8.6 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/ | 220V/380V/ | 220V/380V/ | 220V/380V/ | |
Packing:
Our advantages:
1. Professional quality: we have 9 years experience of making suspended working platforms in China.
2. Competitive price: we can do you a favor based on our factory status especially for big quantity.
3. Fast delivery: our monthly stock more than 1000 sets.
4. Considerate service: our excellent sales team keep the whole day email contact and 24 hours TradeManager online. Engineers keep prompt reply for any questions.
5. We can customized the platform including parts according to your requirements.
