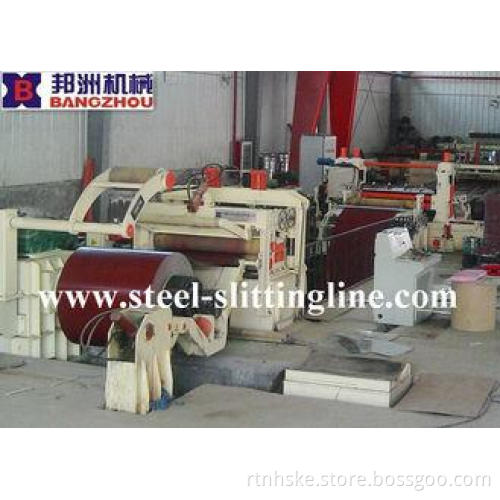

Full Automatic Steel Coil Slitting Line Of Steel Slitter Machine 1600mm Width
Quick Details:
1. Type: automatic slitting line
2. Thickness: 0.3-3mm
3. Width: 500-1600mm
4. Speed: 0-120m/min
5. Loading capacity: 15T
I. Specifications
|
Application: |
CR/HRC/stainless steel /galvanized and so on |
|
thickness of coil plate: |
0.3-3mm |
|
width of coil plate: |
1600mm |
|
coil weight: |
15MT(max) |
|
coil I.D: |
ф508 |
|
coil O.D: |
ф1600mm |
|
the diameter of slitting blade shaft |
ф200 |
|
slitting blade: |
φ200Xφ340X20 |
|
material of slitting blade: |
9CrSi |
|
the hardness of slitting blade: |
HRC58°-60° |
|
recoiler I.D: |
φ508 |
|
power: |
380V/50Hz/3Ph |
|
tolerance of width error: |
≤±0.05mm/2M |
|
line speed |
0-120m/min |
|
area of the whole machine: |
30m(L)x8m(W) |
|
Production orientation |
from right to left |
Ⅱ.Composed devices
1. Hydraulic coil car
2. Hydraulic de-coiler
3. Hydraulic press and guide and pinch device
4. Hydraulic head-cutting machine
5. Looper I
6. Slitting machine
7. Scrap winder
8. Looper II
9. Hydraulic damping and pre-dividing and press device
10. Recoiler
11. Hydraulic unload car
12. Electric control system
13. Hydraulic system
III. Layout
ZJX-0.3-3X1600mm automatic slitting line is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.
IV. Delivery of the line
V. Competitive Advantage
- Automatic design ,easy operation with high production
- Accurate precision of shearing
- Professional design, strict produce
- 100% low price guarantee
- Delivery date guarantee
