Highly Automatic Wasted PET pelletizing line Plastic Pellet
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu ,China |
|---|
Highly Automatic Wasted PET pelletizing line Plastic Pelletizer Machine Long for Life CE , SGS
Quick Detail:
1.Certificate:CE & SGS
2.Capacity:10-900kg/h
3.Warranty:12months
4.Automatic:Highly Automatic
5.Pelletizer type: Strand pelletizer
Applications:
PET pelletizing line is specially designed for PET bottle flakes, PET fiber,with good performance and high output, and are easy to operate and maintain.
Application Raw Materials: PET
Material shapes: bottle flakes,scrap
Description:

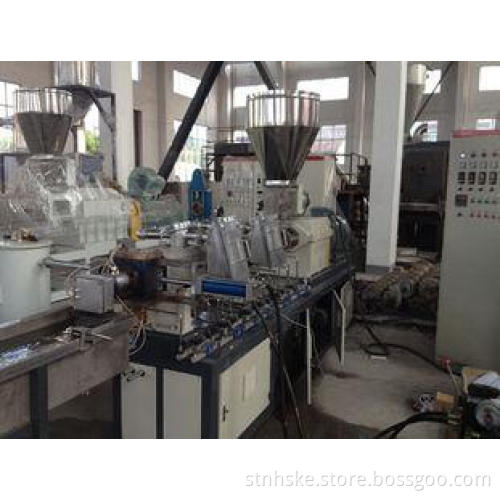

Use a Spiral charger to feed materials into the Extruder– materials evenly squeezed, melted and plastified in the Extruder – material strips coming out from the machine head, after Degassing and filtering system (Hydraulic Screen Changer) – material straps being cooled by Water tank – being dried by Strong air dryer– being transferred and cut in the Pelletizer – being collected by Silo – the End.
Specifications:
Technical parameters of TSSK Series Co-rotating Twin Screw Extruder (Normal type)
| Model | TSSK-20 | TSSK-30 | TSSK-35 | TSSK-50 | TSSK-65 | TSSK-75 | TSSK-95 |
| Screw diameter(mm) | 21.7 | 30 | 35.6 | 50.5 | 62.4 | 71.2 | 91 |
| Rotary speed(rpm) | 600 | 400 | 400/600 | 400/500 | 400/500 | 400/500 | 400/500 |
| Main motor power(KW) | 4 | 11 | 11/15 | 37/45 | 55/75 | 90/110 | 220/250 |
| L/D | 32-40 | 28-48 | 32-48 | 32-48 | 32-48 | 32-48 | 32-40 |
| Output (kg/hr) | 2-10 | 5-30 | 10-80 | 20-150 | 100-300 | 300-600 | 600-1000 |
Technical parameters of TSSK Series Co-rotating Twin Screw Extruder (High torque type)
| Model | TSSK-50B | TSSK-6550B | TSSK-75B | TSSK-75D |
| Screw diameter (mm) | 50.5 | 62.4 | 71.2 | 71.2 |
| Rotary speed(rpm) | 600 | 600 | 600 | 500/600 |
| Main motor power(KW) | 55 | 90 | 132 | 200/250 |
| L/D | 32-64 | 32-64 | 32-64 | 32-64 |
| Output (kg/hr) | 120-280 | 180-400 | 250-650 | 500-1000 |
PET granulation line Parallel twin screw extruder:
