PET Flakes Granulating / Plastic Pelletizer Machine / Pelletizing Line
Quick Detail:
1.pet granulating line
2.Application:recycling and granulating
3.process material:pet bottle flakes
4.capacity:300~500kg/h
Applications:
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function,
the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure,
screw array, venting number and location, feeding method, electrical control methods etc. for rational
allocation.
3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting,
water ring die face hot cutting, Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.
PET granulation line Process Flow :
Description:
PET granulation line is composed of Force feeder ,extruder ,Hydraulic screen changer, strand mould, Water tank ,Dryer, pelletizer. Material through extruder plastify and into strand, after cooling water tank cooling and forming, the dryer to remover strips surface water, then cut into 3*3mm grains.
Raw material :BOPP printing film, PP, HDPE, LDPE, LLDPE, TPV, EVA, ABS, PET, PA and PS, etc
Specifications:
|
Model |
screw diameter (mm) |
L/D |
Capacity(kg/h) |
Main motor power(kw) |
Line length(m) |
|
TSSK35 |
33.3 |
32-62 |
20-80 |
18.5 |
14 |
|
TSSK50 |
48.1 |
32-62 |
50-200 |
37 |
15 |
|
TSSK65 |
63 |
32-62 |
100-350 |
75 |
15 |
|
TSSK75 |
72 |
32-64 |
200-500 |
90 |
16 |
|
TSSK95 |
92 |
62-64 |
700-1200 |
250 |
20 |
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4.Siemens contactor,RKC temperature controller
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!

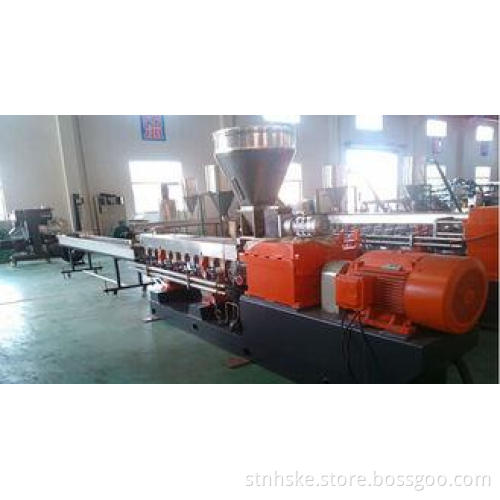

PET granulation line Parallel twin screw extruder:
PET granulation line :
