220v Plastic Granules Making Machine For PET Granules Making
Quick Detail:
- twin screw extruder
- modular structure screw
- high quality motor and gearbox
- Wide range used
- PLC control
- Dimension(L*W*H):4x2x2m
Applications:
The PET granulation line Parallel twin screw extruder is best applicable for:
1.mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc
2.filling nature-changing: PE,PP,EVA+calcium carbonate,talcum powder,
3.functional machine pellets: PE,PA,ABS,PBT+starch:de-compsing machine pellets
4.colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET+pigment and auxiliary
5.various materials: EVA heat-melting glue,polyurethane,fluorin rubber,fluorine plastics.
Description:

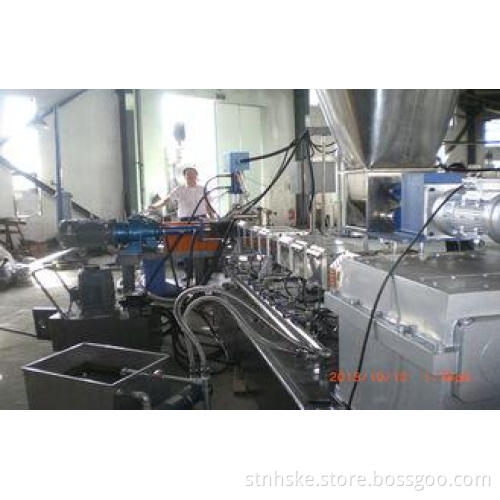

The PET granulation line Parallel twin screw extruder
1.Inverted rotation double-screw stem makes the material flow in shape. This can meet the thchnique demands of tranport, compression, mixture and refining, exhaust, plasticzing of the material.
2.The special oil heating system in the core of the screw stem can ensure the relative stability of the product quality.
3.Different models of screw stems of the machine are designed to match the relevant auxiliary machine to produce all kinds of pipe material, shaped material, grains and others.
Raw material :BOPP printing film, PP, HDPE, LDPE, LLDPE, TPV, EVA, ABS, PET, PA and PS, etc all plastic material.
Specifications:
|
Model |
L/D(mm) |
Max Speed(rpm) |
Motor Power(kw) |
Heater Power(kw) |
Max Output(kg/h) |
|
TSK-35 |
24-56 |
600 |
11-18.5 |
16 |
20-80 |
|
TSK-50 |
24-56 |
500 |
22-37 |
24 |
50-200 |
|
TSK-60 |
24-56 |
300-500 |
37-55 |
30 |
80-300 |
|
TSK-65 |
24-56 |
400-500 |
45-75 |
34 |
100-350 |
|
TSK-75 |
24-56 |
400-500 |
90-160 |
45 |
200-500 |
|
TSK-95 |
24-56 |
300-400 |
185-250 |
60 |
700-1200 |
Competitive Advantage:
- Motor: Siemens
- Control method:PLC
- Output :High Effective and Stable
- Frequency Controller:ABB
- Safety Standard:European Regulations
