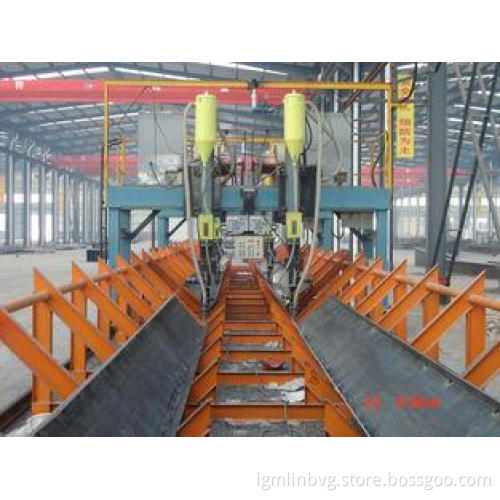

Gantry Multi Spot Welding Machine For Steel H Beam Production Line
Description:
● The machine is specially designed for welding of H-beam.
● It realized the combination of welding control and trolley and can be operated easily.
● Driven by alternating current converter, stable speed, digital display of the linearity speed. Good reliability.
Applications:
This machine is mainly composed of gantry frame, weld arm and tool carriage, welding gun tracing device, welding flux handling system, electric controlling system and power source for submerged arc welding (Also deployed with two sets of auto submerged Lincoln welder DC1000). The function of gantry frame is to support every part and drive every part move when welding.
Specifications:
|
Width of flange plate |
200-800 mm |
|
Height of H steel plate |
200-1500mm |
|
Thickness of flange plate |
6-40mm |
|
Thickness of web plate |
6-32mm |
|
Length of track |
15000mm |
|
Welding velocity |
0.15-1 m/min |
|
Return speed |
3m/min |
|
Gauge of gantry frame |
4000mm |
Competitive Advantage:
● Using manual of the machine (Include electrical schematic)
● Shipping list
● The certification of the machine
● The basis of drawing of the machine
● Hydraulic using manual, inverter using manual,submerged arc welding using manual
