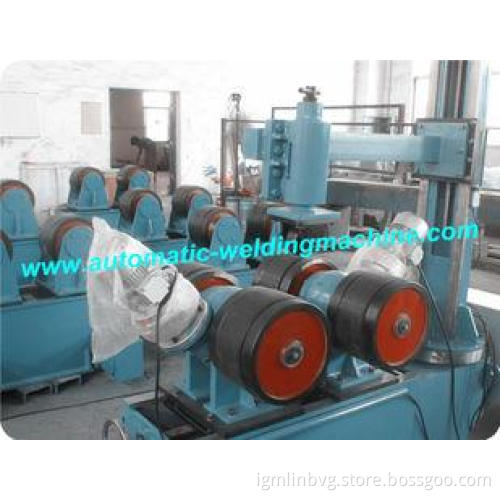

Pinch Pipe Welding Rotator And Welding Positioner For Flange Welding

1. Introduction

Pinch type pipe welding rotator is specially designed and manufactured for purpose of meeting the requirements of enhancing productivity, increasing the extent of automatic, reducing welder’s working intensity and adapting to piping workshop prefabrication. The welding head will be relatively fixed, while the piping spool piece revolving at a specific rate, and the high efficient and low cost shielded welding or SAW process is adopted, so it has the features of easy-operation, reliable-performance and wide-application field.

Friendship Machinery also can design and customize different types according to the customer’s requirements.

2. Technical features

● distance between the wheels may adjust by screw.

● two motors control the pipe rolling

● wheels use of viton

● beam may be lift up/ down by motor

● column may revolve by hand

● foot switch and remote control box included

● color: red or blue

● speed adjust by VFD

● VFD, motor, main electric unit: Germany Siemens or France Schneider, CE or UL

● rotator may move on the rail (special produce for Turkey)

3. Main technical data

If you have any question please let me know, we are a leading pioneer in manufacturing in automatic welding machine, Friendship Machinery is always together with you.
