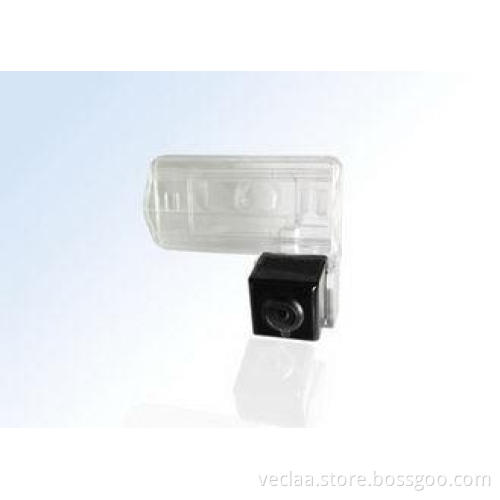

Dustproof HD Vehicle Rear View Camera CMOS sensor for Suzuki
Quick Detail :
Type : Suzuki Backup Camera
Model Number : Suzuki New Sedan
Sensor : 7070 / 3089
Effective Pixels : 648 x 488 pixels / 962×504 pixels
Lens Angle : 170 Degree
Resolution : 420 TV Lines / 800 TV Lines
TV System : PAL / NYSC
Place of Origin : Shenzhen
White Balance / BLC / AGC : Auto
Components :
1. Car camera
2. Power cable 1.5m 1pc
3. Video cable 6m 1pc
Description :
Sensor | PC 7070 / 3089 |
Sensing Area | 3.6mm x 2.7mm |
Effective Pixels | 648 x 488 pixels / 962×504 pixels |
Minimum Illumination | 0.5 Lux (day), 0 Lux (with IR) |
Resolution | 480 TV Lines / 800TV Lines |
Electronic Shutter (Shutter Speed ) | 1/50(PAL)/1/60(NTSC)~1/100,000s |
Video Output | 1.0vp-p, 75 Ohm |
S/N Ratio | Better than 48 dB |
| Auto |
White Balance | Auto |
Power Supply | DC 12V |
Operating Temperature | -20°C~70°C, RH 95% MAX. |
Storage Temperature | -30°C~80°C, RH 95% MAX. |
Applications :
Connect to the display of car or add a rear view mirror display
Model Number : Suzuki New Sedan
Help Parking and Reversing
Specifications :
Working Current | 150 mA |
Power supply | DC 12V |
Anti-vibration | 10g |
Lens angle | 170 degree |
Lens | f=2.5mm F=2.0 |
Connection | RCA / 4 PIN DIN |
Gamma Consumption | 0.45 |
Effective Pixels | 648 x 488 pixels / 962×504 pixels |
Competitive advantages :
Shockproof
Night Vision
Competetive Price
Waterproof
Dustproof
HD
