Custom Precise Aluminium Die Casting , High Precision Gearb

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen city ,China

Product Description

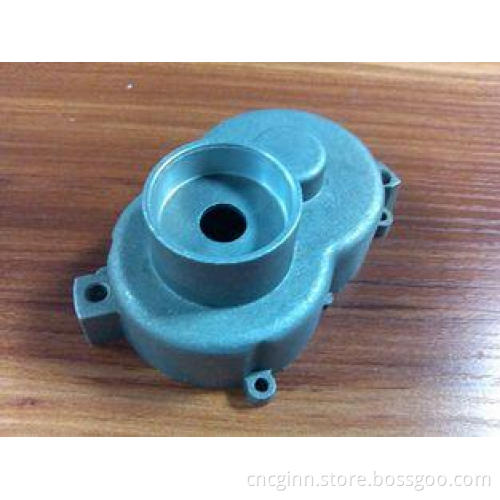

Customer Made Aluminium Die Castings Parts High Precision Gearbox Component

Quick Detail:

Name	Gearbox part	Material	Aluminium alloy 6061-T6 etc
Process	Die casting >CNC milling >remove edge	Application	Every electrical equipment machinery equipment
Feature	Cost effective ,light weight	Certification	ISO9001:2008

Description:

Material : Aluminum Alloy ASTM: A413, A356, A360, A380, A383…etc.

JIS: ADC1, ADC3, ADC6, ADC10, ADC12…etc

Weight : From 0.05kg to 15kg

Surface treatment : Sandblasting, Tumbling, Powder coating, painting, Chromatin (chemical film) and Polishing

Color : RAL or Pantone color code

Applications:

Parts are applied for:

1) Industrial parts,

2) Machinery parts,

3) Construction parts,

4) Train accessories,

5) Insulator fittings,

6) Craft,

7) Agricultural machinery parts etc.

Specifications :

Available materials	Aluminum alloy ADC1, ADC6, ADC12, ADC13, ADC14, ADC15, A380, A360 zinc alloy #3,#5 ect copper or brass steel nickle
Processing	forging/casting/milling/drilling/polishing/ball blasting/sand blasting/painting/anodizing/brushing/assembly/inspecting
Certificate	ISO9001-2000; ISO/TS16949-2002
Equiments	Die casting machine(88T-1650T)/mold making machine/CNC lathes/CNC engraving machnes/WEDM/EDM/CNC milling machine/shot-blasting machine/vibratory finishing machine/testing machine/X-ray diagnosic machine
Package	Pallets/cartons/wooden case/wooden case/customized
Products range	All kinds of aluminum alloy and zinc alloy die casting
Service	OEM/ODM available

Our products :

Physical properties comparison of different die casting alloy:

Physical properties comparison of different die casting alloy
	Aluminum	Brass	Magnesium	Zinc
Tensile strength,psi*1000	47	55	34	41
Yield strength,psi*100(0.2 pct offset)	23	30	23
Shear strength,psi*1000	28	37	20	31
Fatigue strength,psi*1000	20	25	14	7
Elongaton,pct in 2 in.	3.5	15	3	10
Hardness (Brinell)	80	91	63	82
Specific gravity	2.71	8.3	1.8	6.6
Weight,lb/cu.in.	0.098	0.305	0.066	0.24
Melting ponint (liquid),°F	1100	1670	1105	728

Testing Machinery:

Machine Name	Quantity
Hardness tester	4
Height gauge	1
Universal tools microscope	1
Projector	1
Gear testing center	2
Metallographic microscope	1
Three coordinates measuring instrument(CMM)	1
Microcomputer controlling tester	1
Roughness tester	1

Competitive advantages:

Cost effective;
Adhere to specification;
Fast delivery, quick response, ;
Dimensions checked and quality guaranteed;
Our comprehensive machining processes and knowledge of finishing, treatment requirements, tapping and insertion of heli-coils etc will end your arduous journey of looking for qualified suppliers for your custom machining needs. If you have difficulty to find good suppliers for hard to machine products, then we are your right choice.
