Large Load UAV Unmanned Aerial Vehicle Wind Resistant For Military
1. Introduction to UAV
Technical features:
HW-510 is a large-load UAV and new low- and medium-altitude low-speed UAV platform.
It is characterized by fast response, rich payload,high intelligence, and high reliability.
HW-510 adopts the differential GPS and has the autonomous launching and landing
functions. It can carry airborne equipment such as the optoelectronic pod,
infrared, Mini SAR, and laser radar, and complete aerial photography
and reconnaissance tasks in a wide area.
Application fields:
military reconnaissance and communication relay
Specification
Name | Technical Specifications | Name | Technical Specifications |
Wingspan | 8.0 m | Length | 5.6 m |
Takeoff weight | 350 kg | Payload | 70 kg |
Airborne equipment | HD camera and video camera | Power energy | Mixed oil |
Cruising speed | 140-180 km/h | Endurance | 12 h |
Ceiling height | 5000 m | Radio control radius | 150 km (sighting condition) |
Launch | Autonomous wheels | Landing | Autonomous wheels/ |
Wind resistance | Force 7 | Function | Aerial photography and |

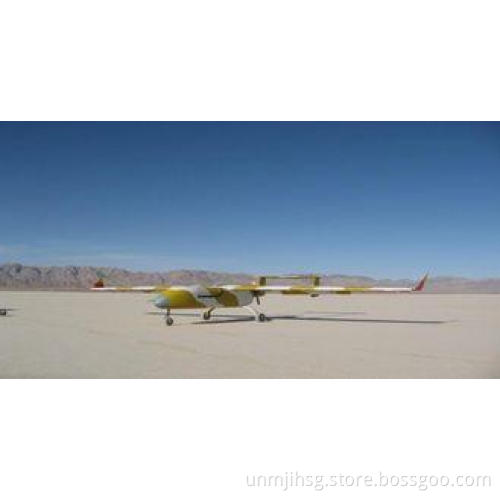

HW-510 UAV
2. Load Introduction
Optical series camera Optical series video camera
Infrared scanner Multi-spectral camera
Optoelectronic pod Laser radar
3. Description
The configurations of all preceding UAVs are standard configurations:
- Optical camera or video camera
- Up to 21 megapixels picture precision
- Up to 1080P video precision
From the company overseas market positioning perspective, the UAV production line can be sold:
- HW-210 UAV production line
- HW-220 UAV production line
- HW-230 UAV production line
- HW-310 UAV production line:
High configuration: differential GPS, up to centimeter-level flight path and landing precision, and
allowed 2 UAVs in one station for each model .Other airborne equipment: including infrared, ultraviolet, optoelectronic pod, laser radar, and multi-spectral camera can be added only when they meet load requirements.
