Epistar P10 Outdoor Advertising LED Display MBI5024 IC DIP3

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Epistar P10 Outdoor Advertising LED Display MBI5024 IC DIP346 160×160 mm

Quick Detail:

1. Epistar LED;
2. 16×16 dots each LED module;
3. R9 GB9×12;
4. DIP346 LED type;
5. 1/4 scan constant current;
6. NovaStudio software.

Detail Description:

More than 7,500 nits/sq.m luminance, visible even under strong sunshine;
10,000 dots/sq.m, high resolution;
Showing video in a vivid way.

Application:

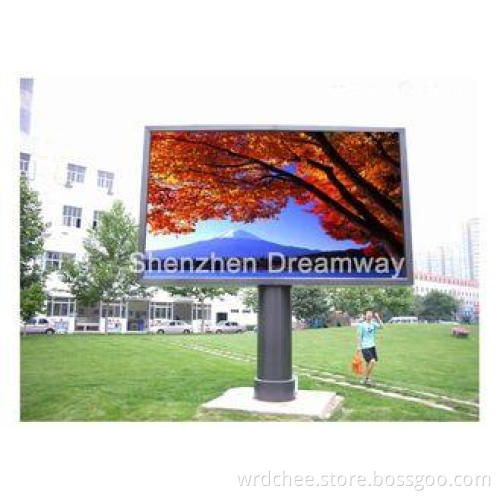

It is installed outside commercial plaza, shopping mall for advertising.

Specifications:

Model	PH10
Pixel Composition	1R1G1B
LED Encapsulation	DIP346
Pixel	10,000 dots/sq.m
LED Chip	Epistar
Module Size	W 160 × H 160 mm
Normal Cabinet Size	W 960 × H 960 mm
Cabinet Color	Black
Cabinet Material	Steel waterproof
Drive Mode	1/4 scan constant current
Luminance	≥7500 nits/sq.m
Refresh Rate	≥800Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Time	＞100,000 hours
Power Source	110V/60HZ and 220V/50HZ interchangeable
Humidity	10%~90%
Control Method	Synchronous control with PC on
Operation System	Win2000 / XP / Vista

P10 Outdoor Advertising LED Display, Outdoor Advertising LED Display Board, Outdoor Advertising LED Display Panel
