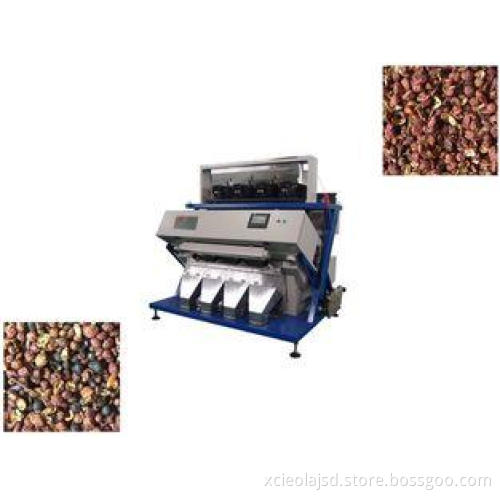

High Speed CCD Color Sorter Machine Sorting Fruits And Vegetables
Quick details:
1) Super Big Production Capacity
2) High Definition, More Accuracy
3) High Sensitivity, Low Carryover Rate
4) Famous Ejector, Stable and Durable
5) Optimized Design, More Easy Maintenance
6) Advanced Software, More Simple to Operate
7) Latest LED Sources
8) Reliable Quality, Good After-sales Services
Applications:
Sugar, Agriculture processing, Sugar Sorting, Grading
Specifications:
|
Model |
HJ-C4R |
|
Machine weight (kg) |
950 |
|
Dimensions(L×W×H)cm |
180×142×143 |
|
Channels |
252 |
|
Materials handling capacity (T/H) |
2.0-3.0 |
|
Accuracy of color selection |
≥99.5% |
|
Best "out of ratio" |
>20:1 |
|
Host power |
2.2 |
|
Air pressure |
≥0.6Mpa |
|
Air consumption (L/min) |
700-2500 |
|
Power supply voltage |
~220V/50HZ |
Detailed descriptions:
1. Using imported 5000*3 pixel true color CCD linear array camera , recognition accuracy up to 0.025m㎡, and take machine vision into production in this industry;
2. Using linear array image scanning technology , high-speed intelligent image acquisition system;
3. Using the most advanced U.S. technology for programming device , and the embedded software operation platform make system more stable, response faster and function more powerful;
4. The system is added to special algorithm , such as shape selection , and area algorithm , to solve problems like sorting some kinds of beans according to their shape , color , and area at the same time and expand the scope of application of color sorter , and make multi-function , multi species of color sorting come true;
5. Using the most advanced LED optics technique in the world, machine has longer life , better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;
6. Using different slide according to different materials , no need to change light source , and it is suitable for a variety of industrial products , beans , nuts , grains and other particles and sheet material;
7. Using of V type , U type , flat slide , and special technology to ensure product stability and reliability;
8. Integrating more than 10 global exclusive patent technology.
Competitive Advantage:
1. 5000*3 pixel CCD camera and photo processing technology
2. Recognition accuracy up to 0.025m㎡
3. Passed CE, UL, ISO9001
4. LED TFT real 10 inch screen
5. Self checking system
