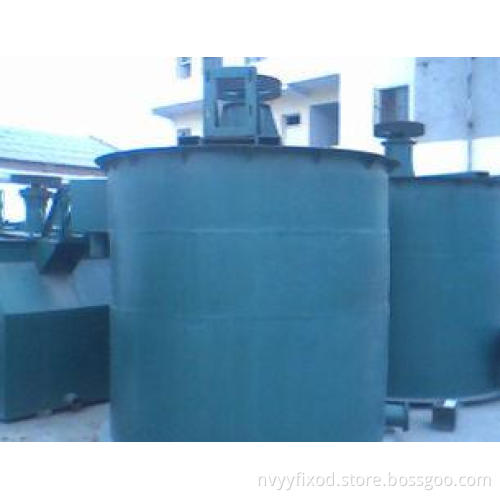

High Concentraton Agitating Tank Mining Equipment With Wearable Rubber Blade
Wearable Rubber Blade BJN High Concentraton Agitating Tank
Quick Detail:
1. Adopt Xinhai abrasion resistant rubber blade.
2. Density can be adjusted according to the requirements of users.
Description:
High concentration agitating tank is used for the pulp stirring before the flotation operations, make the pulp fully mixed with the pharmacy.
Applications:
It is used for the preliminary agitation of ore pulp before the floatation beneficiation.
Principle:
The high speed rotation of impellers can stir ore pulps, which cause ore particles and reagents fully contact.
Specifications :
| Model | Effective volume (m3) |
Impeller RPM (r.p.m) |
Impeller diameter (mm) |
Motor model |
Motor power (kw) |
Weight(kg) |
| BJN-1000×1000 | 0.58 | 530 | 400 | Y132M2-6 | 5.5 | 1800 |
| BJN-1500×1500 | 2.2 | 320 | Y160L-6 | 11 | 2500 | |
| BJN-2000×2000 | 5.46 | 240 | 700 | Y200L-8 | 15 | 3100 |
| BJN-3000×3000 | 19.1 | 210 | Y225M-8 | 22 | 4660 |
