Large Amount Of Suction Air Wemco Cells , Large amount Mining Machinery

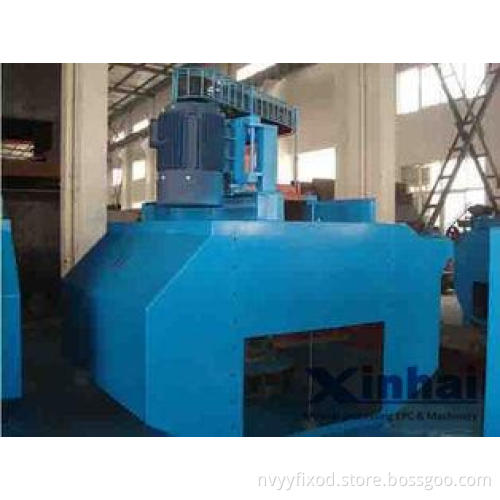

Large Amount Of Suction Air Wemco Flotation Cell
Flotation Cell—Description
Wemco flotation cell is used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation,fine separation and flotation.
Flotation Cell—Features
1. Large amount of suction air and low energy consumption.
2. Better for the mineralization of mining, reagents and gas.
3. Large air-absorption capacity and good effect of dispersion.
4. It can be combined with model SF as a flotation cell set.
Flotation Cell—Application
It is used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation,fine separation and flotation.
Flotation Cell—Working principle
When impeller revolves, the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry. On the other hand, the mixed mineral slurry is mingled with additive. At the same time, the mineral is bounded with thinning foams and floats up to the adjustment flashboard so that the useful foams are scraped with squeegee.
Flotation Cell—Specifications :
| Model | Effective Volume (m3) |
Capacity (m3/min) |
Diameter of impeller (mm) |
Impeller revolution ( r.p.m) |
Motor power for agitation (kw) |
Motor power for scraper (kw) |
Weight of single tank (kg) |
| JJF-4 | 4 | 2.0-4 | 410 | 305 | 11 | 1.5 | 2303 |
| JJF-5 | 5 | 2.0-6 | 2416 | ||||
| JJF-8 | 8 | 4.0-8 | 540 | 233 | 22 | 4700 | |
| JJF-10 | 10 | 5.0-10 | 4820 | ||||
| JJF-16 | 16 | 5.0-16 | 700 | 180 | 37 | 8000 | |
| JJF-20 | 20 | 5.0-20 | 730 | 8500 |
