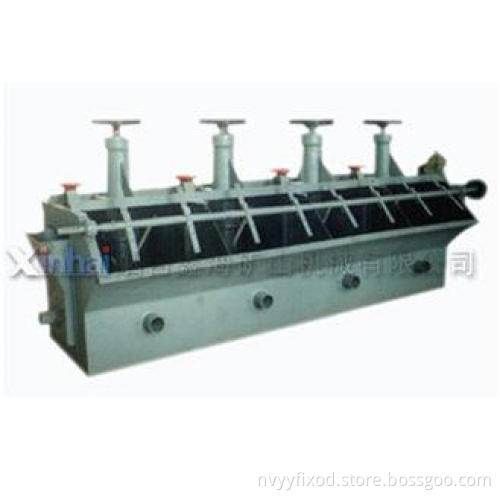

Air - Inflation Floatation Cell
Convenient Operation Air - Inflation Floatation Cell
Description
Air-inflation flotation cell is a equipment for separating minerals from gangue by taking advantage of differences in their hydrophobicity.
Features
1.It can be combined with other model as a flotation cell set, working as suction cell.
2.It has the function of automatic suction slurry with a little higher energy consumption.
Application
Flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry.
Working principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.
Specifications :
| Model |
Effective volume (m3) |
Capacity (m3/min) |
Diameter of impeller (mm) |
Impeller revolution (r.p.m) |
Air pressure of blower (KPa ) |
Max of air filling (m3/m2) |
Motor power for agitation (kw) |
Motor power for scraper (kw) |
Weight (kg) |
| KYF-1 | 1 | 0.2-1 | 340 | 281 | ≥12.6 | 2 | 4 | 1.1 | 826 |
| KYF-2 | 2 | 0.4-2 | 410 | 247 | ≥14.7 | 5.5 | 1419 | ||
| KYF-3 | 3 | 0.6-3 | 480 | 219 | ≥19.8 | 7.5 | 1.5 | 1885 | |
| KYF-4 | 4 | 1.2-4 | 550 | 200 | ≥19.8 | 11 | 2206 | ||
| KYF-8 | 8 | 3.0-8 | 630 | 175 | ≥21.6 | 15 | 3600 | ||
| KYF-16 | 16 | 4.0-16 | 740 | 160 | ≥25.5 | 30 | 5900 | ||
| KYF-24 | 24 | 4.0-24 | 800 | 150 | ≥30.4 | 7500 | |||
| KYF-38 | 38 | 10-38 | 880 | 139 | ≥34.3 | 45 | 10300 |
