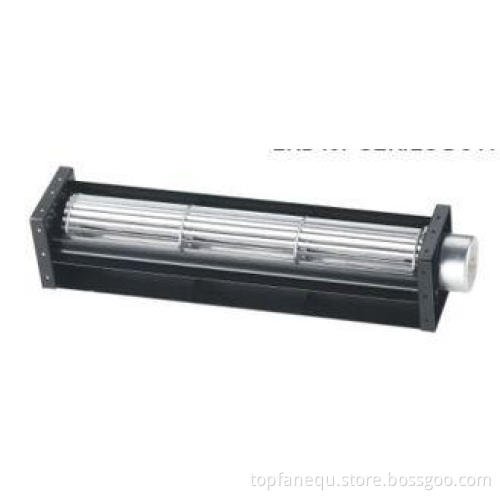

Aluminum Impeller 12 Volt DC Cross Flow Blower Fan For Home Appliances

12V 40x90mm Cross Flow Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.

Specification

Model	Size(mm)			Rated voltage	Rated Current	Speed	Max Static Pressure	Air Flow		Noise Level	Weight
	A	B	C	(v)	(A)	(rpm)	(mmAq)	(m3/mim)	CFM	(dB-A)	(g)
LRD40090A12	98	108	134	12	0.20	3000	2.9	0.7	24	36	210
LRD40090A24				24	0.15					36
LRD40150A12	160	170	196	12	0.25	2600	2.6	1.0	35	36	250
LRD40150A24				24	0.20					36
LRD40190A12	198	208	234	12	0.30	2500	2.5	1.4	49	37	300
LRD40190A24				24	0.15					37
LRD40240A12	245	260	286	12	0.35	2500	2.5	2.1	74	41	400
LRD40240A24				24	0.25					41
LRD40290A12	300	310	356	12	0.55	2700	2.4	2.7	95	43	540
LRD40290A24				24	0.35					43
LRD40350A12	360	370	416	12	0.60	2600	2.1	3.0	106	44	570
LRD40350A24				24	0.40					44
