12.1" 450nits digital camera tft lcd module display 800x600
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TaiWai |
|---|

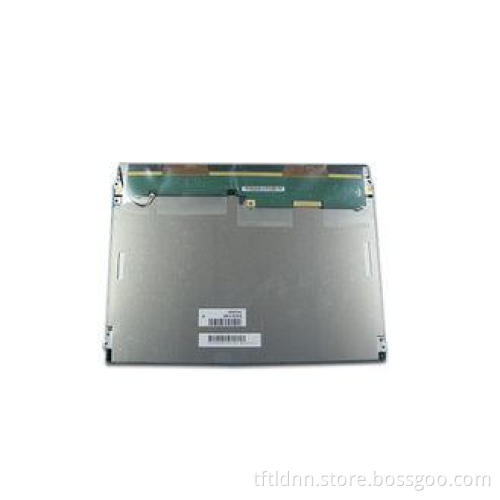

12.1" 450nits digital camera tft lcd module display 800x600 TM121SDS01
Quick Detail:
1. Lcd size:12.1”
2.Resolution: 800(RGB) x 600
3. Brightness:450nits
4.Weight:TBD
5.Backlight:LED
6.Interface:LVDS (1 ch, 8-bit)
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
|
Items |
speciation |
|
Screen Diagonal(inch) |
12.1" |
|
Display area |
246.0 (H) × 184.5 (V) mm (typ.) |
|
Diagonal size of display |
30.7 cm (12.1 inches) |
|
Drive system |
a-Si TFT active matrix |
|
Display color |
16.2 M colors |
|
Pixel |
800 (H) × 600(V) pixels |
|
Pixel arrangement |
RGB vertical stripe |
|
Pixel pitch |
0.3075 (H) × 0.3075 (V) mm |
|
Module size |
279.0 (H) ×209.0 (V) ×9.0 (D) mm |
|
Weight |
TBD |
|
Contrast ratio |
700 :1 (typ.) |
|
Viewing angle |
160°/ 135° (typ.) |
|
Color gamut |
55 % (typ.) |
|
Response time |
35 ms (typ.) |
|
Luminance |
450 cd/m2 (typ.) |
|
Transmissive Mode |
Normally White |
|
Surface Treatment |
Anti Glare |
|
Signal system |
LVDS 1port |
|
Power supply voltage |
LCD panel signal processing board: 3.3V |
|
Backlight |
White-LED |
|
Power consumption |
TBD |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
