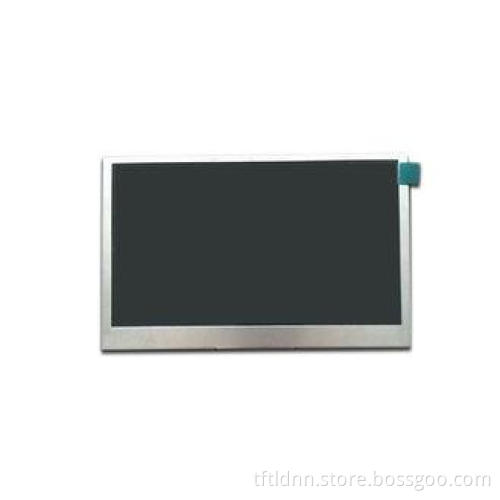

TFT 8 inch TianMa LCD display 1024x768 250nits touch panel
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TaiWai |
|---|
TFT 8 inch TianMa LCD display 1024x768 250nits touch panel , TM080TDH01
Quick Detail:
1. Lcd size:8”
2. Resolution: 1024(RGB) x 768
3. Brightness: 250nits
4. Weight:TBD
5. Backlight:LED
6. Interface:LVDS (1 ch, 8-bit)
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
|
Module number |
TM080TDH01 |
|
Resolution |
1024(RGB) x 768 |
|
Pixel Pitch |
0.15825×0.15825 mm (mm) |
|
Active Area |
164.65×124.4 mm (mm) |
|
View angle |
R/L/U/D 70/70/50/70(Deg) |
|
Mode |
TN |
|
LCD Surface |
Glare |
|
Number of Colors |
16.7M |
|
Electrical Interface |
LVDS (1 ch, 8-bit) |
|
Brightness |
250cd/m2 |
|
Contrast ratio |
700:01:00 |
|
Outline dimension |
183(W)×141(H)×3.4(D)(mm) |
|
Backlight |
WLED |
|
Supply Voltage (V) |
3.3V |
|
Response time |
25(ms)(Typ.) |
|
Operate temperature |
-20-70 (°C) |
|
Storage temperature |
-30-80 (°C) |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
