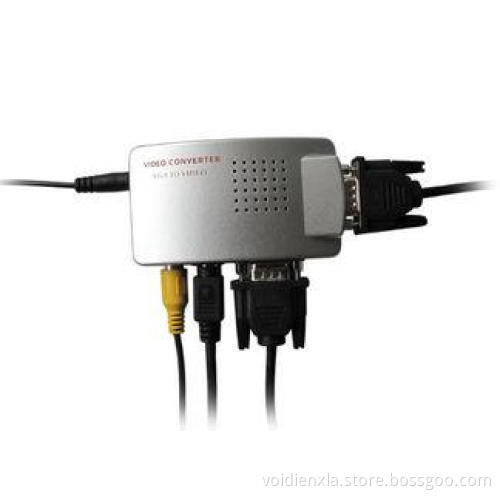

ZOOM VGA TO AV video converter / convertor box PC TO TV 102

ZOOM VGA TO AV video converter / convertor box PC TO TV 1024 x768 60 / 75 hz

Function introduction

- a VGA signal input port, a VGA output port

- a Video output port, a Sideo output port

- a DC 5 v power supply interface

-input VGA signal support resolution:

640 x480 @ 60/72/75/85 hz, 800 x600 @ 60/75 hz, 1024 x768 @ 60/75 hz

- meanwhile output VGA VIDEO S - VIDEO signal

- display what television displays on PC monitor at the same time

- to support the following systems: NTSC (Taiwan, the United States, etc), NTSC - EIAJ (Japan), PAL (Europe, China), PAL - M (Brazil), PAL - N (Uruguay, Paraguay), and other countries television system

- support fullscreen (OVERSCAN) and the full screen (UNDERSCAN) two display mode

- light, thin, short, small easy to carry

- size: 110 mm (length) x56mm (width) x36mm (height)

At the same time support the PC and MAC computers

Need no install driver, plug and play

Connection diagram

Interface specification

Button Specification

OSD MENU

HSIZE : enlarge

VSIZE

BRIGHTNESS

CONTRAST

HUE

SATURATION

SHARPNESS

OSD BACKGROUND

Accessories List
