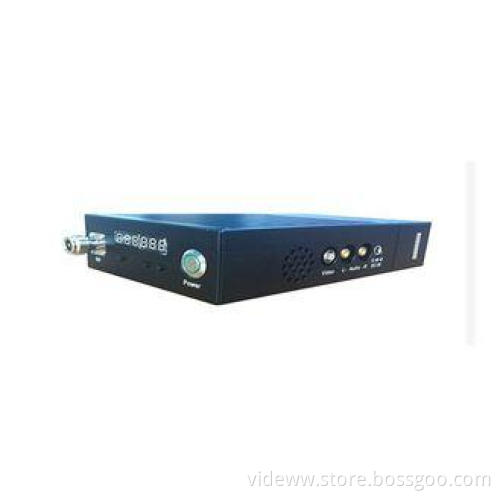

Waterproof Video High Resolution HD SDI 2.4 Ghz Video Trans

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Water Proof Wireless Video HD SDI Transmitter for Data Transmission

Introduction:

Modularization Design, High Degree of Electric Circuit Integration, Small Sized
Applied COFDM Modulation Technology, H.264 Compression Method
Omnidirectional Transmission, transmission through walls or buildings
External high capacity lithium battery, easy for battery replacement
AES Encryption for data security(RS232)
Transmission in high speed moving objects
H.264 Effectra
Mostly applied to Surveillance Systems for Security Departments
CNC Machined rugged Aluminum case
High resistance for water, humidity, shock and earthquake.

Product Features:

High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power;
Support NLOS transmission, strong diffraction capability;
Applied COFDM modulation technology, H.264 video compression.

Technical Parameters:

Item	Description
Modulation Type	QPSK(4QAM),16QAM,64QAM
Working Frequency	2.4G
RF Bandwidth	2/3/4/5/6/7/8MHz(optional)
Encryption Method	128 - bit AES (can set user’s password)
Parameter Control Method	Adjustable LED digital control panel
FEC(forward error correction)	1/2,2/3,3/4,7/8
Guard Interval	1/4,1/8,1/16,1/32
Video Input	SDI: support HD1080P,720P,576,480
Video Compression	H.264
RFI (RF Interface)	N female head
Audio Interface	AV terminal, intercom earplugs
RF Output Power	31dBm
External(or built-in)Battery	DC12V/1.55A
Working Environment	-10~70℃
Overall Dimensions	22012045(mm)

Background:

Zhongchuang Tech is specialized in COFDM, TDD and 3G/4G wireless video transmission products for over 9 years, including video wireless transmitter, video wireless transmitter and receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles and so on.
