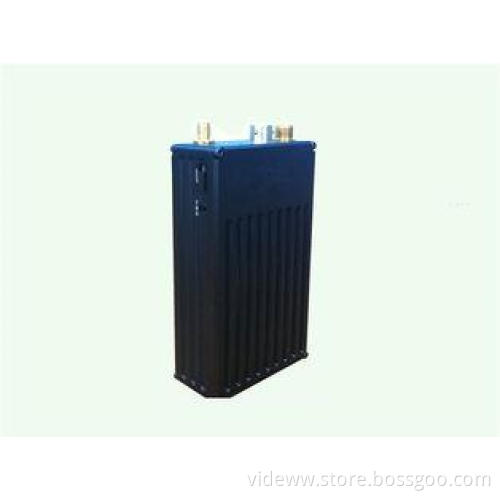

1W COFDM SD Video Wireless Transmitter , Mini Size , Portable

Introduction:

The LinkAV C328S-1W COFDM transmitter is a powerful solution for applications requiring high quality wireless transmission of video, audio and data.
There are many options for the LinkAV C328S-1W depending on the required deployment scenario. Example transmitters include vehicle and pole mounted units as well as miniature models for body worn and UAV type applications.
The LinkAV C328S-1W product range supports various options for frequency band, output power, channel bandwidth and video encoding. Transmitters are available from 300MHz up to 900MHz.
The LinkAV C328S-1W is suitable for line of site and non line of site transmission. Increased range may be achieved by selecting transmission mode, booster amplifiers and antenna type.
.

Product Features:

High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power;
Support NLOS transmission, strong diffraction capability;
Applied COFDM modulation technology, MPEG-2 video compression.

Technical Parameters:

Item	Description
Modulation Type	QPSK(4QAM),16QAM,64QAM
Working Frequency	300-900MHz;( per 0.5M adjustable)
Transmission Power	30dBm
RF Bandwidth	2/3/4/5/6/7/8MHz(optional)
FEC(forward error correction)	1/2 2/3 3/4 7/8
Guard Interval	1/4,1/8,1/16,1/32
Video Input	Camera:2.5mm
Video Compression	MPEG-2 4:2:0
Audio Input	AV:3.5mm Interface
RF Interface	SMA F head
Parameter Control Method	Adjustable digital LED control panel
Encryption Method	128 - bit AES (can set user’s password)
Transmission Distance	0.5-1 km
Working Voltage	DC12V
Working Current	1.2A
Working Temperature	-10~70℃
Boundary Dimensions	100×59×22mm

Background:

Zhongchuang Tech is specialized in COFDM, TDD and 3G/4G wireless video transmission products for over 9 years, including video wireless transmitter, video wireless transmitter and receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles and so on.
