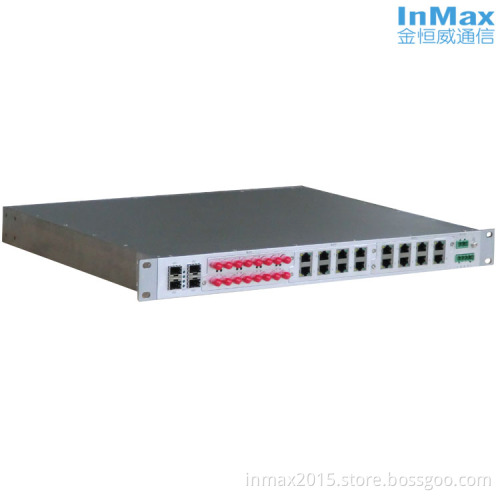

InMax PT3628 4G+24Ports Modularized Full Advanced Managed Industrial Ethernet Switches

InMax PT3628 4G+24Ports Modularized Full Advanced Managed Industrial Ethernet Switches

Man Features

ØModularized design, Flexible ports configuration, and support

any combination

ØUp to 24 ports and 4 Giga SFP ports

ØProprietary Protocol "Max Ring" (recovery time < 20ms),

RSTP,STP and MSTP for network redundancy

ØSNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance network security

ØSupport VLAN and QoS

ØSupport IGMP Snooping and GMRP

ØEasy network management through web browser,CLI,Telnet/serial console,Windows

utility and SNMP

ØIndustrial-grade design with -40 to +75°C operating temperature and redundant power

inputs

ØMetal,IP40 protection

ØOptional front and rear wiring brings convenience for different wiring environment

Overview

PT3628 Series Modularized Advanced Managed Industrial Ethernet Switches equip with up to 4 Gigabit Ethernet ports. The [Max Ring" redundant ring (recovery time < 20ms),RSTP,STP,and 110/220 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications. Optional front and rear wiring brings convenience for different wiring environment. AII these features make PT3628 Series suitable for a variety of industrial applications

Features and Benefits

Ports

·Uplink:

4x1000BaseX SFP slots

·Downlink:

Up to 24 ports with 100M, 3 card slots

Card slots support 8F,8T,4T4F,2F6T,6F2T.

High Reliability

·Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,and RSTP for

network redundancy

·Support LACP to expand the bandwidth of a switch port,balance the traffic among all the

ports in link aggregation and enhance connection reliability.

Management & Maintainability

·Support SNMP v1/v2c1v3 and RMON MIB Group 1,2,3,9

Comprehensive Security

·Support 802.1X authentication

·Support MAC address authentication

Versatile QoS Policies

·0ffer powerful hardware ACL capability

·Support different priority criteria: DSCP priority,802.1p priority,Strict Priority(SP) and

Weight Round Robin(WRR)

·Support diversified flow-based QoS:rate limit,traffic shape,traffic statistics,and priority

marking

Specifications

Standards:

IEEE802.3

IEEE 802.3u

IEEE802.3z

IEEE 802.3ab

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for STP

IEEE 802.1w for Rapid STP

IEEE 802.1s for Multiple STP

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk

Protocols:

IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP,

SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH,

SNMP Inform, LLDP, SNTP Server/Client

MIB:

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,

Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control:

IEEE802.3x flow control,back pressure flow control

Switch Properties:

Priority Queues: 4

Max. Number of Available VLANs: 4094

VLAN ID Range: VID 1 to 4094

IGMP Groups: 256

MAC Table Size: 8K

Packet Buffer Size: 2 Mbit

Interface:

Fiber ports:1000BaseX(SFP slots),100BaseFX(ST connector)

RJ45 ports:10/100BaseTX auto negotiation

Console port:RS-232(RJ45 connector)

Alarm Contact:

1 relay outputs with current carrying capacity of 2A@250VAC/220VDC

Power Requirements:

Redundant dual inputs,A C-powered or DC-powered

Power : 110,220VDC(88-300V) or 110,220VAC(88-300V)

Input Voltage: 24VDC(18~36VDC)

48VDC(36~72VDC)

110/220VAC(88~300V)

Input Current: 0.41A@24VDC,10W

0.21A@48VDC,10W

0.045A@220VAC,10W

Input Current(Max): 1.83A@24VDC,44W

0.91A@48VDC,44W

0.2A@220VAC,44W

Overload Current Protection: Present

Reverse Polarity Protection: Present

Connector: 5-contact terminal blocks

Physical Characteristics:

Housing: Metal,IP40 protection

Dimensions: 440 x 44.5 x 370mm

Weight: 5kg

Installation: 19-inch 1U rack installation

Environmental Limits:

Operating Temperature:-40 ~ +85°C (-40 ~ 187°F )

Storage Temperature: -40 ~ +85°C(-40 ~ 185°F)

Ambient relative Humidity: 5 ~ 95%(non-condensing)

Standards and Certifications:

Safety: UL 60950-1,CSA C22.2 No, 60950-1 and EN 60950-1

EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

EN 61000-4-2 (ESD) Level4,EN 61000-4-3 (RS) Level3,

EN 61000-4-4 (EFT) Level4,EN 61 000-4-5 (Surge) Level4,

EN 61000-4-6 (CS) Level3,EN 61000-4-8 (PFMF) Level5,

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty Period: 5 years
