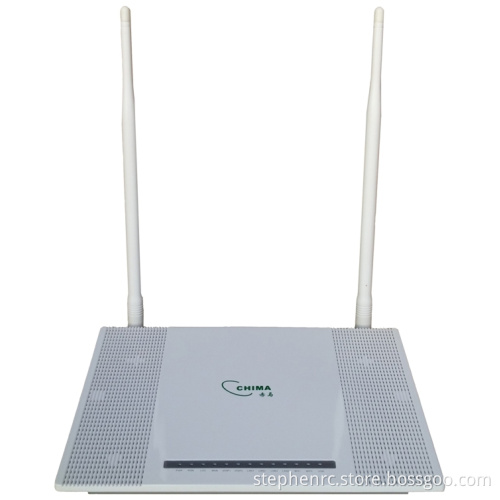

SON8018UVW7dB 4FE+2FXS+WiFi GEPON ONU:
The SON8018UVW7dB is a Telecom grade GEPON Optical Network Unit (ONU) based on IEEE802.3ah Gigabit EPON Standard. It is a all-in-one GEPON ONU/CPE suitable for Triple play applications in FTTH and FTTO solutions. The SON8018UVW7dB comes with 2*7db high gain external antennas, powering up 140% WiFi Coverage.
It offers 1 GEPON SC port, 4*10/100Base-Tx LAN ports, 2 FXS VoIP ports, along with a 300Mbps WiFi Router. It provides 1.25G transmission rate over a single mode gigabit fiber, serves the high bandwidth requirement of subscribers. Its VoIP, WiFi and LAN interfaces covers all hardware requirements for the services that families will need.
The SON8018UVW7dB is a CPE. It supports multiple virtual WAN connections, different WAN connections can be associated with physical LAN interfaces and VLAN IDs. You can separate services to different LAN interfaces and configure QOS rules easily for each subscriber device. It also supports TR069 and FTP/TFTP/HTTP Auto provision. Internet Service Providers can maintain and manage subscriber devices remotely in either ways. It is a ONU specially designed for ISPs deploying Internet Data, Voice and IPTV services over GEPON fiber network.
Main Features:
Fully complies with IEEE802.3ah GEPON standard, supports most GEPON OLT brands
Built-in with 4*10/100Base-Tx LAN ports, can connect 4 LAN clients, such as PC, IP phone, IPTV boxes
Built-in with a 300Mbps WiFi Router, users can directly access Internet with no need of buying extra WiFi Router
Comes with 2*7dB high power external antennas, greatly enlarging WiFi Coverage
Built-in with 2 FXS VoIP ports, users can apply both Phone and Fax services
Support IPv4 and IPv6, ensuring compatibility and usability in both IP network types.
Support Multiple WAN connections, each WAN connection can associate with a LAN/WLAN interface and VLAN ID.
Enabling separating subscriber services to different LAN/WIFI interfaces and associating with QOS rules
Support AES encrypted fiber transmission,enhancing transmission security
Support FEC (Forward Error Correction), ensures high reliable and precise data transmission
Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage.
Support L2 Switching and L3/4 Home Gateway/CPE features with hardware NAT
Transmitting on WDM/Single fiber, saving costs on fiber cables, max transmission distance can reach up to 20Km.
Upstreaming works at 1310nm, and Downstream at 1490nm wavelength, avoiding fiber signal conflictions
Support IEEE802.1Q VLAN and IEEE802.1P QOS, ensuring customer satisfaction of Internet quality.
Management and Maintenance:
Support serial interface maintenance using UART
Support local http WEB and Telnet management
Support Ethernet OAM based management
Support TR069, can work with a customer appointed ACS
Support Auto Provisioning through FTP/TFTP/HTTP servers.
The SON8018UVW7dB is a Telecom grade GEPON Optical Network Unit (ONU) based on IEEE802.3ah Gigabit EPON Standard. It is a all-in-one GEPON ONU/CPE suitable for Triple play applications in FTTH and FTTO solutions. The SON8018UVW7dB comes with 2*7db high gain external antennas, powering up 140% WiFi Coverage.
It offers 1 GEPON SC port, 4*10/100Base-Tx LAN ports, 2 FXS VoIP ports, along with a 300Mbps WiFi Router. It provides 1.25G transmission rate over a single mode gigabit fiber, serves the high bandwidth requirement of subscribers. Its VoIP, WiFi and LAN interfaces covers all hardware requirements for the services that families will need.
The SON8018UVW7dB is a CPE. It supports multiple virtual WAN connections, different WAN connections can be associated with physical LAN interfaces and VLAN IDs. You can separate services to different LAN interfaces and configure QOS rules easily for each subscriber device. It also supports TR069 and FTP/TFTP/HTTP Auto provision. Internet Service Providers can maintain and manage subscriber devices remotely in either ways. It is a ONU specially designed for ISPs deploying Internet Data, Voice and IPTV services over GEPON fiber network.
Main Features:
Fully complies with IEEE802.3ah GEPON standard, supports most GEPON OLT brands
Built-in with 4*10/100Base-Tx LAN ports, can connect 4 LAN clients, such as PC, IP phone, IPTV boxes
Built-in with a 300Mbps WiFi Router, users can directly access Internet with no need of buying extra WiFi Router
Comes with 2*7dB high power external antennas, greatly enlarging WiFi Coverage
Built-in with 2 FXS VoIP ports, users can apply both Phone and Fax services
Support IPv4 and IPv6, ensuring compatibility and usability in both IP network types.
Support Multiple WAN connections, each WAN connection can associate with a LAN/WLAN interface and VLAN ID.
Enabling separating subscriber services to different LAN/WIFI interfaces and associating with QOS rules
Support AES encrypted fiber transmission,enhancing transmission security
Support FEC (Forward Error Correction), ensures high reliable and precise data transmission
Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage.
Support L2 Switching and L3/4 Home Gateway/CPE features with hardware NAT
Transmitting on WDM/Single fiber, saving costs on fiber cables, max transmission distance can reach up to 20Km.
Upstreaming works at 1310nm, and Downstream at 1490nm wavelength, avoiding fiber signal conflictions
Support IEEE802.1Q VLAN and IEEE802.1P QOS, ensuring customer satisfaction of Internet quality.
Management and Maintenance:
Support serial interface maintenance using UART
Support local http WEB and Telnet management
Support Ethernet OAM based management
Support TR069, can work with a customer appointed ACS
Support Auto Provisioning through FTP/TFTP/HTTP servers.
