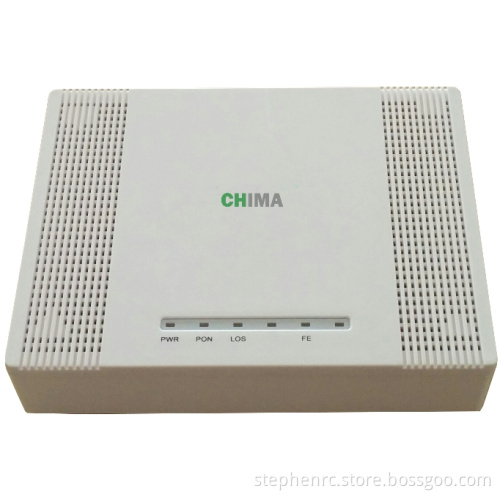

The SON801FU is a Telecom grade IEEE802.3ah based GEPON ONU (Optical Network Unit). It provides 1*1.25G EPON Uplink SC port and 1*10/100Base-Tx Ethernet LAN downstream port. Its GEPON uplink provides a high bandwidth input of 1.25Gbps. And its 100Mbps LAN port can be connected to a WiFi Router for applying home networking, VoIP and IPTV services. The SON801FU has a cost effective 100Mbps hardware structure, it's the most competitive ONU terminal for ISPs deploying FTTH networks.
Main Features:
Complies with IEEE802.3ah Gigabit EPON standard, supporting pure optical fiber transmissions.
Transmitting on WDM/Single fiber, saving costs on fiber cables, max transmission distance can reach up to 20Km.
Upstreaming works at 1310nm, and Downstream at 1490nm wavelength, avoiding fiber signal conflictions
Support flexible Bandwidth Assignation, can assign demanded bandwidth for every subscriber.
Support enhanced transmission security, support encrypted broadcast at downstream and TDMA for upstream.
Support Multicast, subscribers can optionally apply for VOD, Video conferencing, etc.
Support MAC address and IP Address binding to a specific PC, protecting your privacy.
Support Single or Multiple LLIDs, different users and services can be bound to different SSIDs.
Support unique IEEE802.1P QOS priorities for different services and LLIDs,
Support local or remote management, can run management and provision through NMS.
Support Fiber Failure detection, NMS can indicate the failure and the location of it.
Hardware Features:
Offers 1*10/100Base-Tx LAN port
Sensibility of Gepon Optical port: -2dBm to -27dBm
Fiber Ratio: Different Fiber Ratio applies to different transmission distance, 1:64 MAX.
Support 2.2Gbps Backplane bandwidth
Comes with live LED Indicators for working status, Link status, System Alarm, GEPON status & Alarm, power, etc
Desktop design, plastic housing with enhanced cooling design,
DC 12V, 0.5A External switching power adaptor, support Asia, Europe, U.S, UK, AU and Brazilian standard power plugs.
Software Features:
Support layer 2 switching features
Support ONU auto detection and auto registration
Support MAC Address binding and filtering
Support IP Address binding and filtering
Support ONU alarm and User connection testing
Support FIFO, support port aggregation
Support Port Mirroring and Broadcast control
Support DHCP Option 82 and DHCP Snooping
Support IEEE802.1Q VLAN, Port Based VLAN,
Support IEEE802.1P QOS, TOS, COS
Support IEEE802.1d Spanning Tree
Support IEEE802.1x authentication
Support MAC addresses limitation,
Support IGMP V2, V3 and IGMP Snooping for multicast
Support IEEE802.3X full duplex, half duplex backpressure flow control
Support bandwidth control
