1ge Gepon ONU

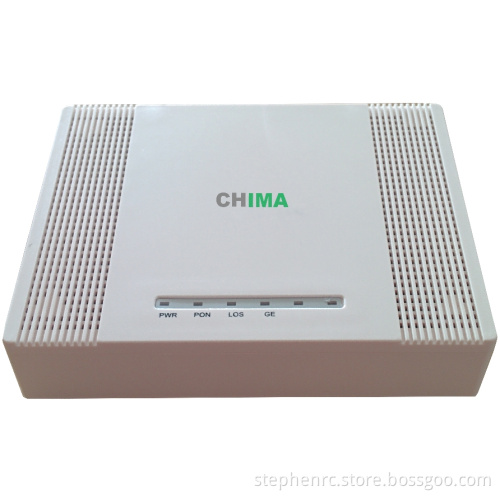

The SON801GU is a Telecom grade IEEE802.3ah based GEPON ONU (Optical Network Unit). It provides 1*1.25G EPON Uplink SC port and 1*10/100/1000Base-Tx Gigabit LAN downstream port. Its GEPON uplink provides a high bandwidth input of 1.25Gbps. And, its Gigabit LAN port can be connected to a WiFi Router for Home networking services. With high speed upstream and downstream transmission capability, the SON801GU provides a high bandwidth to users. It is a cost effective 1GE ONU that ISPs can deploy in FTTH and FTTO networks.

Main Features:

• Complies with IEEE802.3ah Gigabit EPON standard, supporting pure optical fiber transmissions.
• Transmitting on WDM/Single fiber, saving costs on fiber cables, max transmission distance can reach up to 20Km.
• Upstreaming works at 1310nm, and Downstream at 1490nm wavelength, avoiding fiber signal conflictions
• Support flexible Bandwidth Assignation, can assign demanded bandwidth for every subscriber.
• Support enhanced transmission security, support encrypted broadcast at downstream and TDMA for upstream.
• Support Multicast, subscribers can optionally apply for VOD, Video conferencing, etc.
• Support MAC address and IP Address binding to a specific PC, protecting your privacy.
• Support Single or Multiple LLIDs, different users and services can be bound to different SSIDs.
• Support unique IEEE802.1P QOS priorities for different services and LLIDs,
• Support local or remote management, can run management and provision through NMS.
• Support Fiber Failure detection, NMS can indicate the failure and the location of it.



Hardware Features:

• Offers 1*1.25G Gepon SC port for uplinking,
• Offers 1*10/100/1000Base-Tx LAN port
• Sensibility of Gepon Optical port: -2dBm to -27dBm
• Fiber Ratio: Different Fiber Ratio applies to different transmission distance, 1:64 MAX.
• Support 4Gbps Backplane bandwidth
• Comes with live LED Indicators for working status, Link status, System Alarm, GEPON status & Alarm, power, etc
• Desktop design, plastic housing with enhanced cooling design,
• DC 12V, 0.5A External switching power adaptor, support Asia, Europe, U.S, UK, AU and Brazilian standard power plugs.



Software Features:

• Support layer 2 switching features
• Support ONU auto detection and auto registration
• Support MAC Address binding and filtering
• Support IP Address binding and filtering
• Support ONU alarm and User connection testing
• Support FIFO, support port aggregation
• Support Port Mirroring and Broadcast control
• Support DHCP Option 82 and DHCP Snooping
• Support IEEE802.1Q VLAN, Port Based VLAN,
• Support IEEE802.1P QOS, TOS, COS
• Support IEEE802.1d Spanning Tree
• Support IEEE802.1x authentication
• Support MAC addresses limitation,
• Support IGMP V2, V3 and IGMP Snooping for multicast
• Support IEEE802.3X full duplex, half duplex backpressure flow control
• Support bandwidth control
