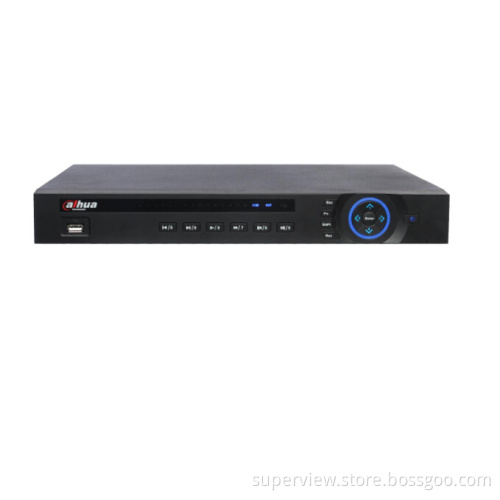

8 Channel 1080P Dahua 1u HD Cvi DVR (HCVR5208A-V2)

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

Features:
Support HDCVI/Analog/IP Video input
Up to 4/8 cameras with 1080p realtime preview
H. 264 dual-stream video compression
HCVR7204/7208A-V2: All channel 1080P realtime recording
4/8 channel synchronous realtime playback, GRID interface & smart search
HDMI/VGA simultaneous video output
Support 2 SATA HDDs up to 8TB, 2 USB2.0
3D intelligent positioning with Dahua PTZ dome camera
ONVIF Version 2.3 conformance
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech, and etc.
Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Model			DH-HCVR5204A-V2	DH-HCVR5208A-V2
System
Main Processor			Embedded processor
Operating System			Embedded LINUX
Video
Input			4 channel, BNC	8 channel, BNC
Standard		HDCVI	1080P/720P HDCVI Camera
		Analog	NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
		IP	1080P/720P/D1/CIF IP Camera
Audio
Input			4 channel, RCA
Output			1 channel, RCA
Two-way Talk			Reuse audio input/output channel 1
Display
Interface			1 HDMI, 1 VGA
Resolution			1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split			1/4	1/4/8/9
Privacy Masking			4 rectangular zones (each camera)
OSD			Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression			H.264/G.711
Resolution			1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120)
Record Rate	Main Stream:		1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
	Extra Stream		CIF/QCIF(1~25/30fps),D1(1~12/15fps)
Bit Rate			48~4096Kb/s
Record Mode			Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval			1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events			Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
Video Detection			Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input			4 channel		16 channel
Relay Output			3 channel
Playback & Backup
Sync Playback			1/4		1/4/9
Search Mode			Time/Date, MD & Exact search (accurate to second)
Playback Functions			Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode			USB Device/Inernal SATA burner/Network
Network
Ethernet			RJ-45 port (10/100M/1000M)
Network Functions			HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access			128 users
Smart Phone			iPhone, iPad, Android, Windows Phone
Storage
Internal HDD			2 SATA ports, up to 8TB
Auxiliary Interface
USB Interface			2 ports (1 Rear), USB2.0
RS485			1 port, For PTZ control
General
Power Supply			DC12V/4A
Power Consumption			15W(without HDD)
Working Environment			-10 ~+55centigrade / 10%~90%RH / 86~106kpa
Dimension(W×D×H)			1U, 375mm×285mm×55mm
Weight			2.35KG(without HDD)
