10.4 Inch Touch Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, Shenzhen
Payment Type:	T/T

Product Description

Product Discription:

1. 10.4 inch capacitive touch screen sensor +TFT
2. High brightness

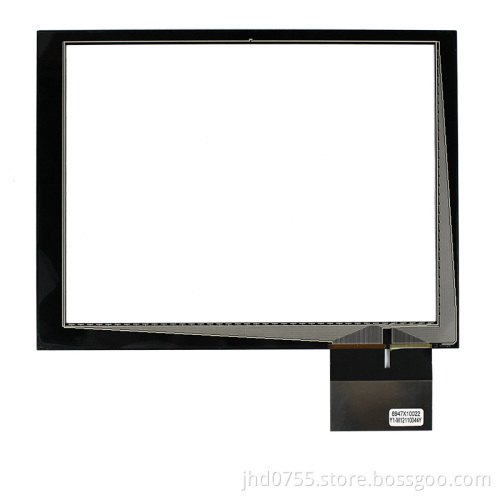

Product Drawing:

10.4 Inch Touch Panel

Product Parameter:

Size: 10.4"

Part number: 8947X10022

Lens size(mm): 243.0*184.0*1.1

Sensor size(mm): 241*182.3*0.7

Total thickness,without foam(mm): 2

Active area(mm): 214.2*161.4

Independent key: /

View area(mm): 213.2*160.4

Surface hardness(mm): ≥7H

Resolution ratio: 800*600

Linearity(mm): ±1.0(±1.5)

Touch point: 10

Working voltage: 2.8-3.3V

Interface I2C : 1.GND 2.VDD 3.INT 4.SDA 5.SCL 6.RST

Power (VDD=2.8V): Normal operation :13mA Green mode:4.5mA Sleep mode:0.1mA

Transmittance(%): ≥90

Haze value(%): <0.1

Operation temperature: -20°~70°

Storage temperature: -30°~80°

Product Advantages:

1. The type of touch panel can be customize. Capative and resistive screen are both available.

2. 4.3'' and 7'' TFT can be customize for high brightness back light. Visiable under the sun light.

3. Provide the CTP TOTAL SOLUTION, reduce the R&D time for customers.
