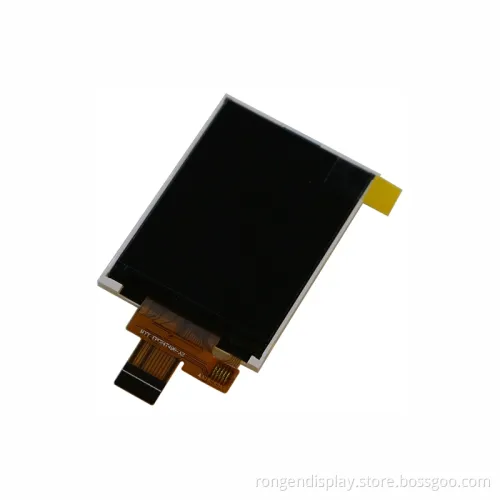

Ronen 2.4 Inch TFT LCD Display Watch/Toy/Camera

Ronen 2.4 Inch TFT LCD Display Watch/Toy/Camera

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG024GSD-05R

Resolution

240*320

Brightness

220CD/M2

Contrast Ratio

500:1

Active Area(W×h)

36.72*48.96

Controller

Ili9341V

Interface

3-Wire-Spi

Operating Temperature

-20~+70

Storage Temperature

-30~+80

Transport Package

Standard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

100000/Month

Product Description

General Specification

Item	Contents
LCD Type	TFT
Display color	262K
Viewing Direction	6 O'Clock
Gray scale inversion direction	12 O'Clock
Operating temperature	-20~+70ºC
Storage temperature	-30~+80ºC
Module size	Refer to outline drawing mm
Active Area(W×H)	36.72X48.96 mm
Number of Dots	240×320 dots
Controller	ILI9341V
Power Supply Voltage	2.8V
Outline Dimensions	Refer to outline drawing
Backlight	1X4-LEDs (white)
Interface	3-Wire-SPI

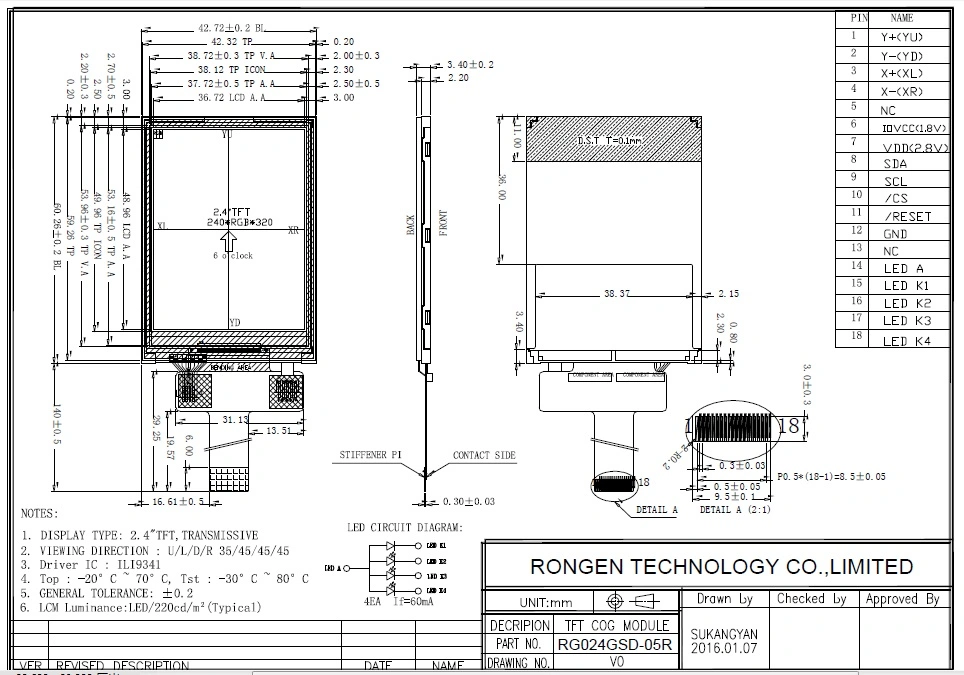

Mechanical Drawing
Ronen 2.4 Inch TFT LCD Display Watch/Toy/Camera

Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display (10inch and above)	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
