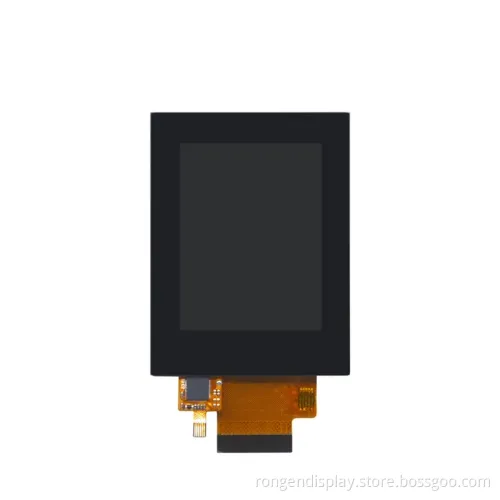

Ronen 2.4 Inch TFT LCD Screen 240X320 Display with Capacitive Touch

Ronen 2.4 Inch TFT LCD Screen 240X320 Display with Capacitive Touch

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG-T024HQI-13CP

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Number of Dots

240*320

Luminance

450CD/M2

Contrast Ratio

500:1

Active Size (W*H)

36.72*48.96

Module Size (W*H*T)

54*72*4.6

Pixel Pitch (W*H)

0.153*0.153

Diver IC

Ili9488

Interface Type

RGB/MCU/Spi

Backlight Type

6-Chip White LED

Colors

16.7m

Transport Package

Standard

Specification

CE. RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

10000/Month

Product Description

General Specification:

Feature		Specification	Unit
Display Spec	Size	2.4	inch
	Resolution	240*320	dots
	Pixel pitch	0.153(H) * 0.153(V)	mm
	Display Mode	IPS/NB	-
	Viewing Direction	ALL	o'clock
	Gray Scale Inversion Direction	ALL	o'clock
	Luminance	450	cd/m2
Mechanical	LCM (W * H * D)	54.0072.004.60	mm
Characteristics	Active Area (W * H )	36.72*48.96	mm
	With /Without TP	without	-
	LED Numbers	6-LED	pcs
	Operation temperature	-20~+70	ºC
	Storage temperature	-30~+80	ºC
Electrical	Interface	MCU/RGB/SPI/40PIN	-
Characteristics	LCM Power Supply	2.8	V
	LED Power Supply	6	V
	Color Depth	65K/262K	-
	LCM Driver IC	ILI9341V	-
	CTP Dricer IC	FT5346	-

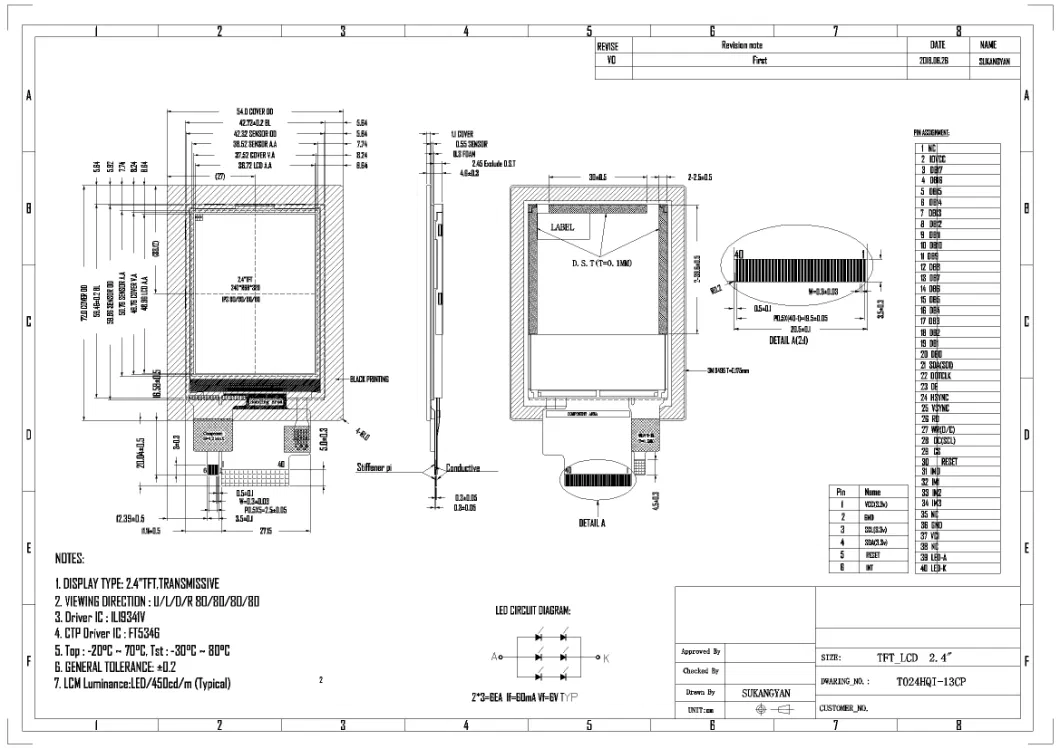

Mechanical Drawing:

Ronen 2.4 Inch TFT LCD Screen 240X320 Display with Capacitive Touch

Product Application:

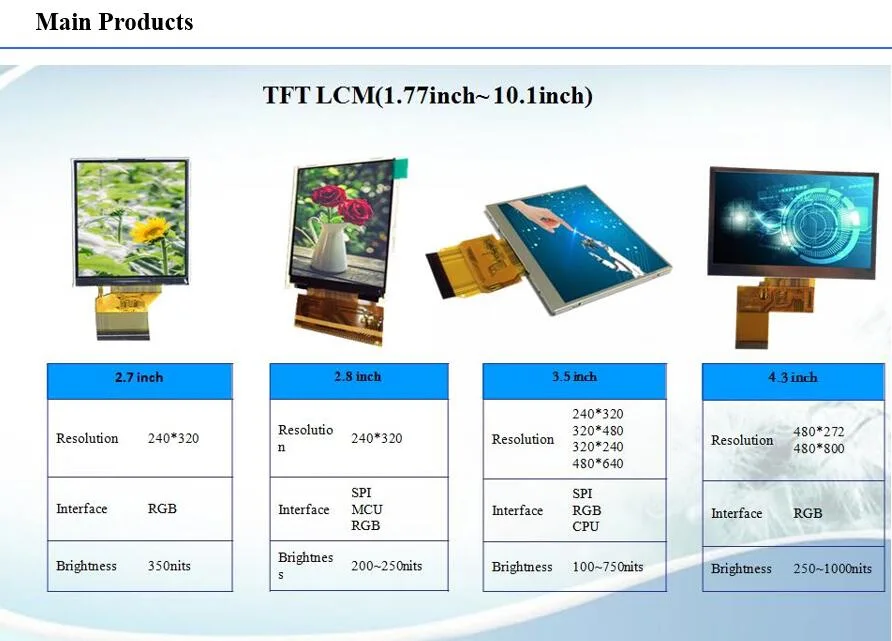

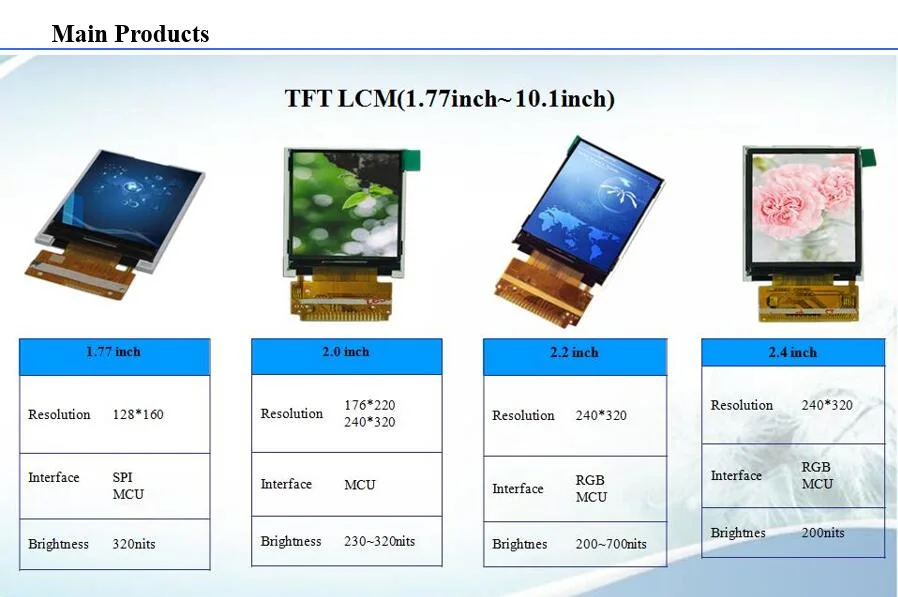

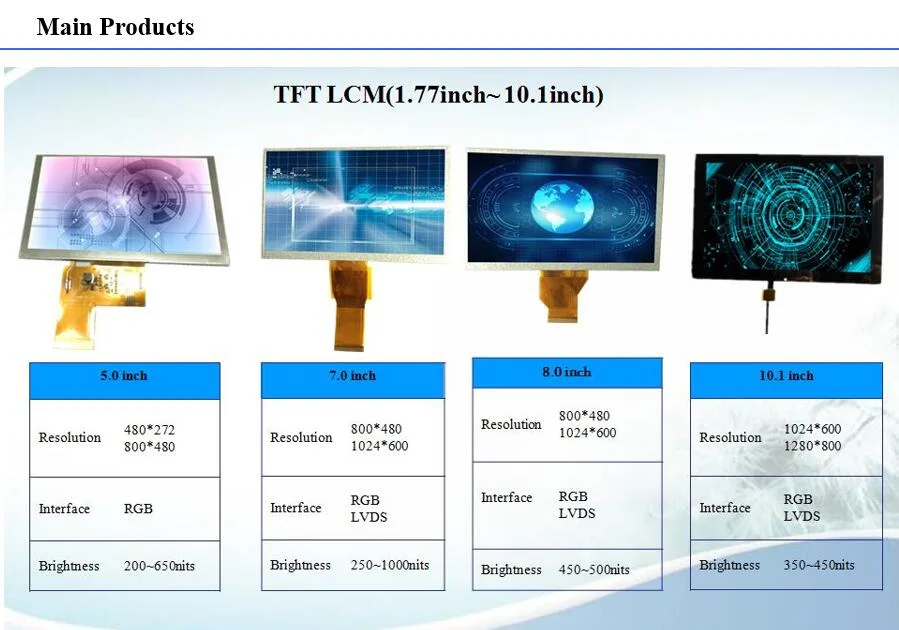

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display (10inch and above)	educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED	elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould	industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
