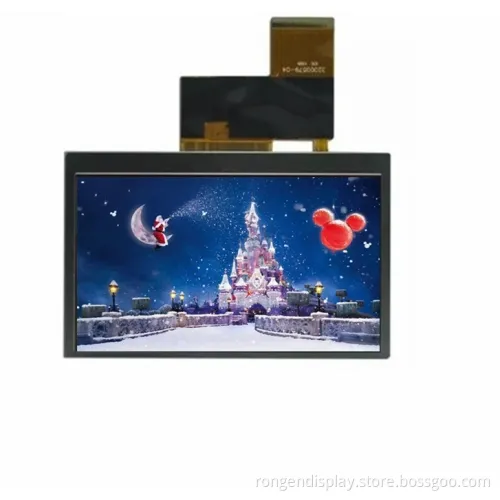

Rg043dtt-14 ODM 4.3 Inch 480*272 All Viewing TFT LCD Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG043DTT-14
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
480X272
Luminance
800 CD/M2
Outline Size
105.5X67.2X2.9 mm
Active Area
95.04X53.856 mm
Back Lights
2X6LED
Interface
24bits RGB
Controller
Ota5180A
Connector
40pin
Operating Temperature
-35 ~ 85
Storage Temperature
-45 ~85
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents |
| LCD Type | TFT |
| Numbers of Dots | 480xRGBX272 |
| Active Area(W*H*T) | 95.04X53.856 mm |
| View Direction | All |
| Driver IC | OTA5180A |
| Module Size(W*H*T) | 105.5X67.2X2.9 mm |
| Backlight | 2x6LED |
| Interface | 24bits RGB |
| Brightness | 800cd/m2 |

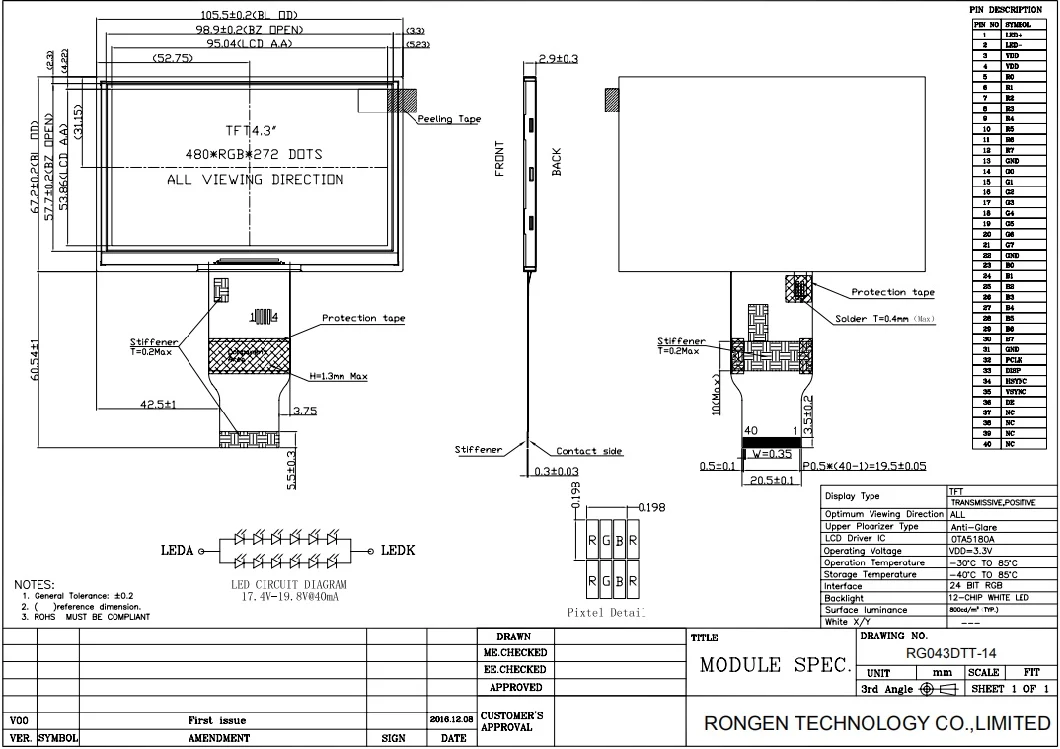

Outline drawing

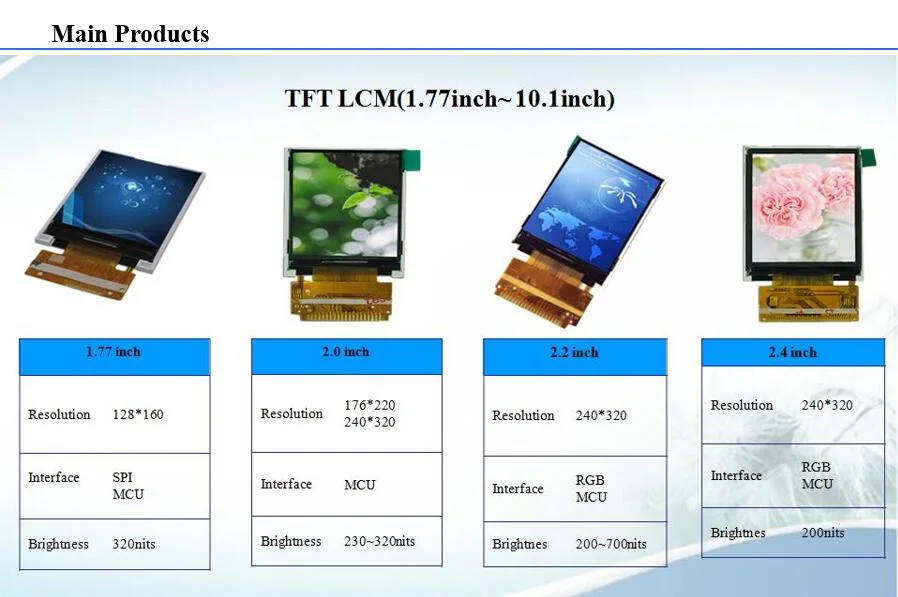

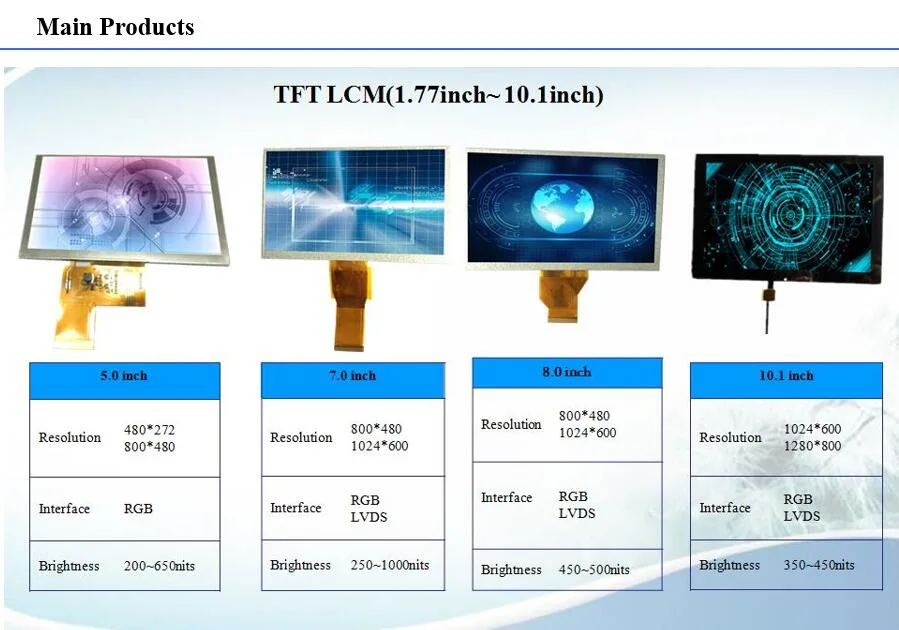

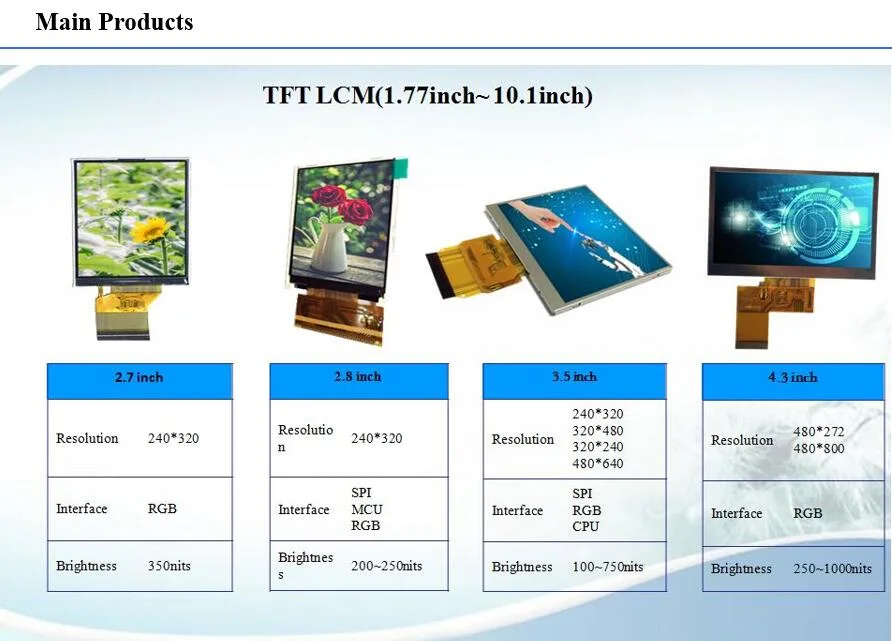

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

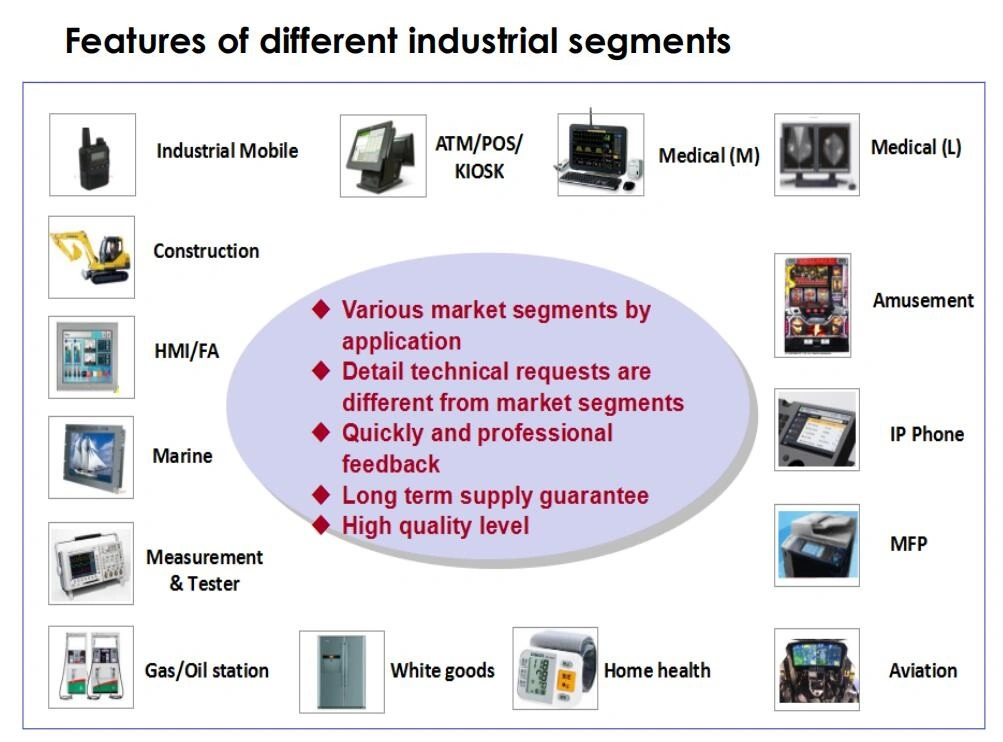

| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
