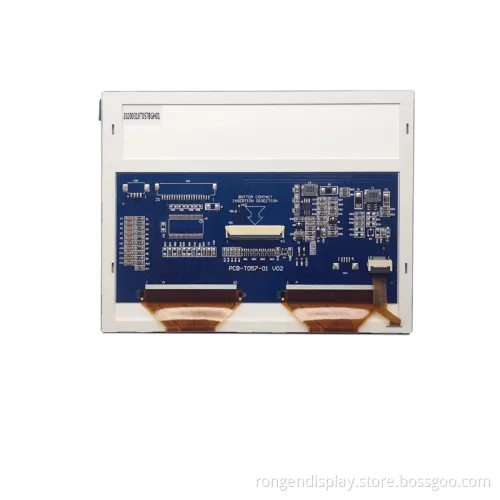

Factory Direct Sale 5.7 Inch 640*480 LCD Screen Display for DSLR Camera Surveillance

Factory Direct Sale 5.7 Inch 640*480 LCD Screen Display for DSLR Camera Surveillance

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG057JQT-01

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Resolution

640*480

Luminance

700 CD/M2

Contrast Ratio

250:1

Back Lights

3*7LED

Outline Size

127*98.43*7.0t mm

Active Area

115.2*86.4 mm

Operating Temperature

-20~70

Storage Temperature

-30~80

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

specification

ITEM	CONTENTS
LCD Type	TFT Transmissive
Technology type	a-Si TFT Active matrix
Resolution	640(RGB)*480 Dots
Pixel Configuration	RGB Vertical Stripe
Active Area	115.20*86.40 mm
Viewing Direction	6 O'clock(without image inversion)
Driver IC	HX8250A(2)+HX8678B(1)
Module Size(WxHxT)	12798.437.0(Max) mm
Back Light	White LED
Surface treatment	Anti-glare
System interface	18 Bit RGB interface

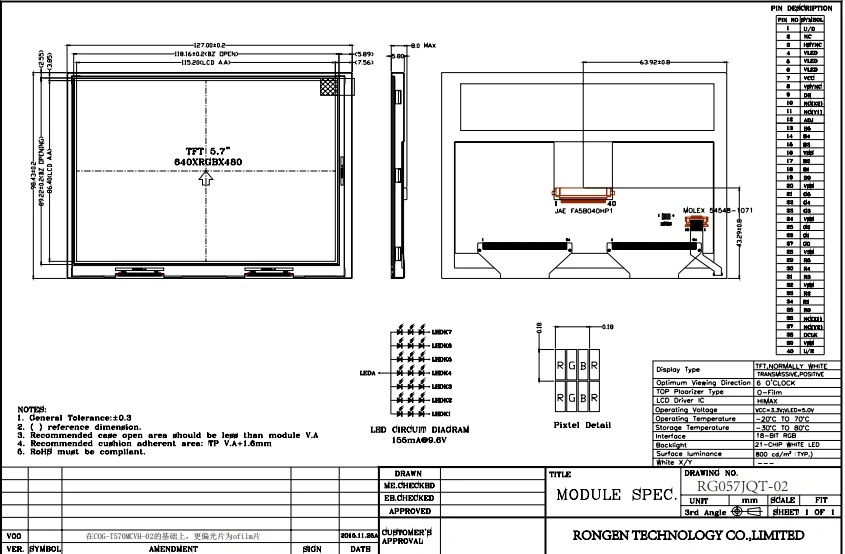

Mechanical Drawing

Factory Direct Sale 5.7 Inch 640*480 LCD Screen Display for DSLR Camera Surveillance

Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics, medical instruments.
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

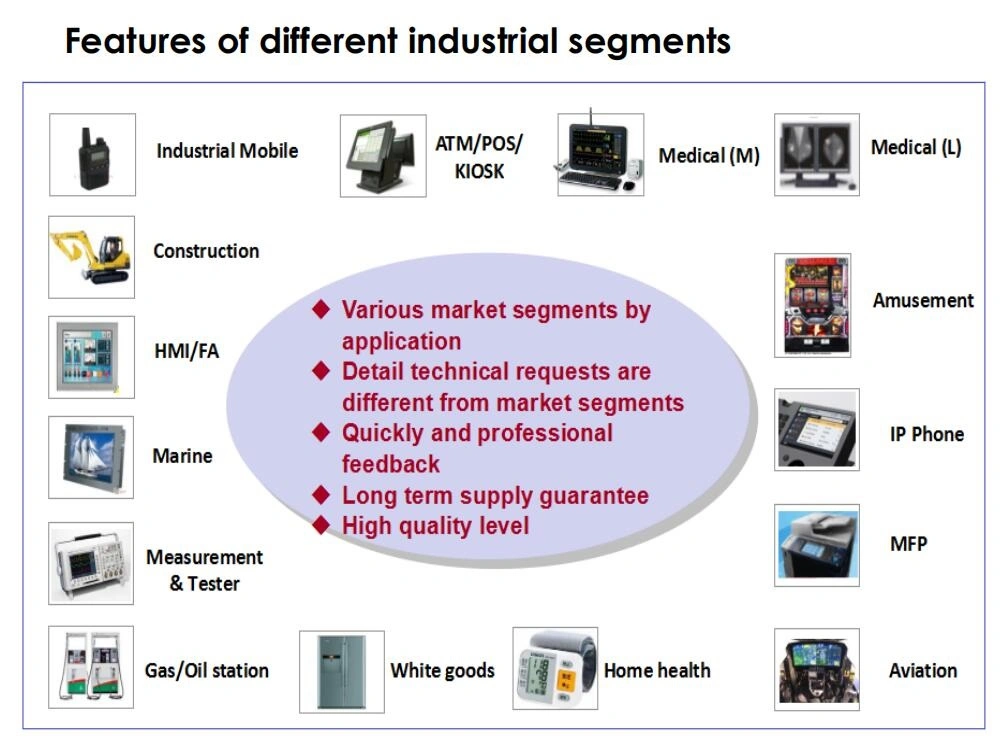

Applications

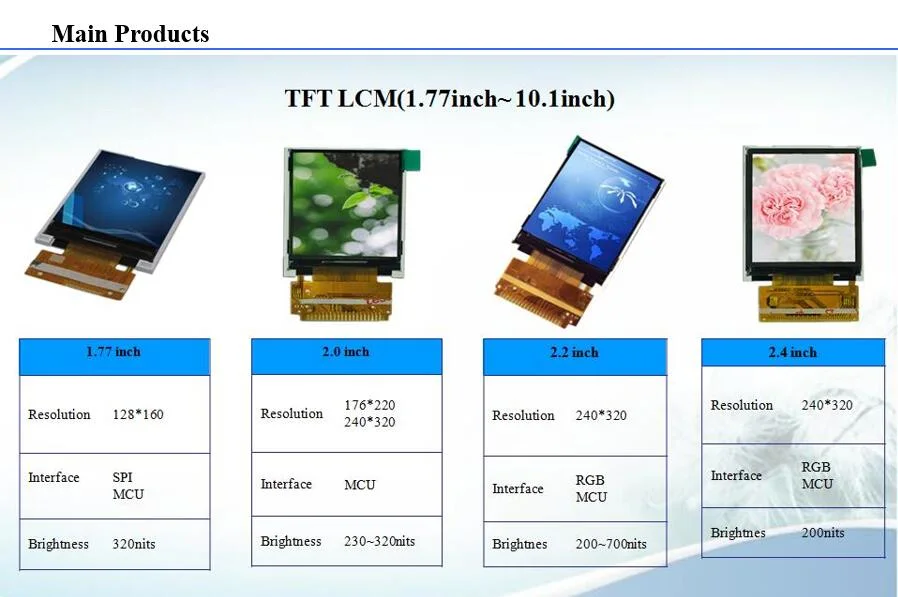

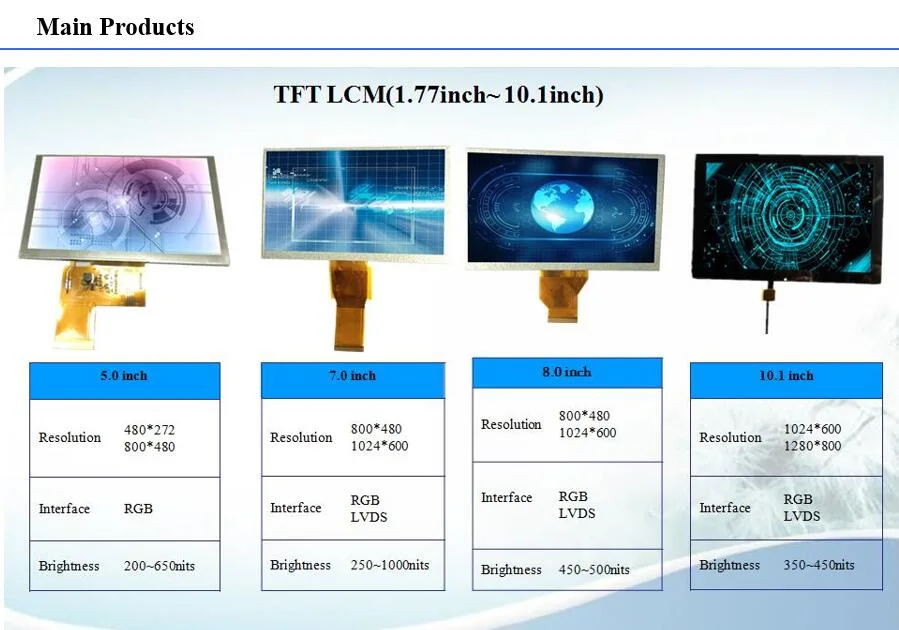

Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.

Product	Application
Small-size tft lcd display	Mobile device,watch,toy,medical equipment, office electronic equipment,camera, air-condition display, etc.
Mid-size tft lcd display	Mobile device,medical equipment,car, automotive product,industrial control equipment,pos,pda, household video doorbell, air-condition display,etc.
Big-size tft lcd display	Educational product,automotive product,video door phone, audiovisual equipment,dvd player,media play,tablet pc, security products,etc.
Tn/stn//fstn/oled	Elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	Industrial control equipment,electronic product,toy, security product,it digital product, sports equipment,etc.
