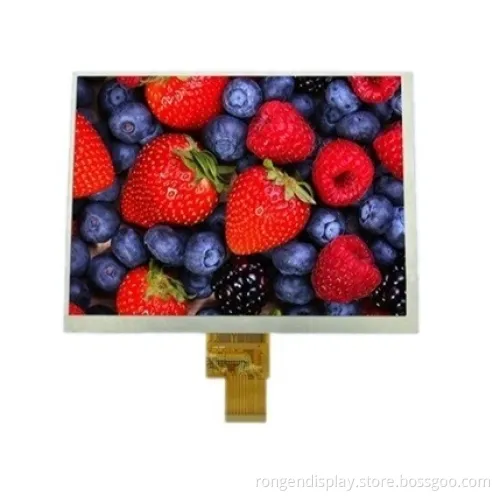

High Resolution 1024X768 LCD Display 8.0inch LCD Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG080HQD-03
Widescreen
Not Widescreen
Response Time
20ms
3D
Not 3D
Interface Type
Lvds
Pin
40 Pin Soldering Type
Resolution
1024*768
Luminance
350CD/M2
Contrast Ratio
500:1
Operating Temperature
-20~70
Storage Temperature
-30~80
Active Area
162.05*121.54
Outline Size
174.00*136.00*2.45
Colors
16.7m
Viewing Direction
All
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
Specification:
| LCD Type | TFT - |
| Display color | 16.7M |
| Viewing Direction | All the viewing O'Clock |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
| Module size | 174.0x136.0x2.45 mm |
| Active Area(W×H) | 162.05X121.54 mm |
| Number of Dots | 1024×768 dots |
| Power Supply Voltage | 3.3 V |
| Backlight | 3X11-LEDs (white) pcs |
| Interface | LVDS |

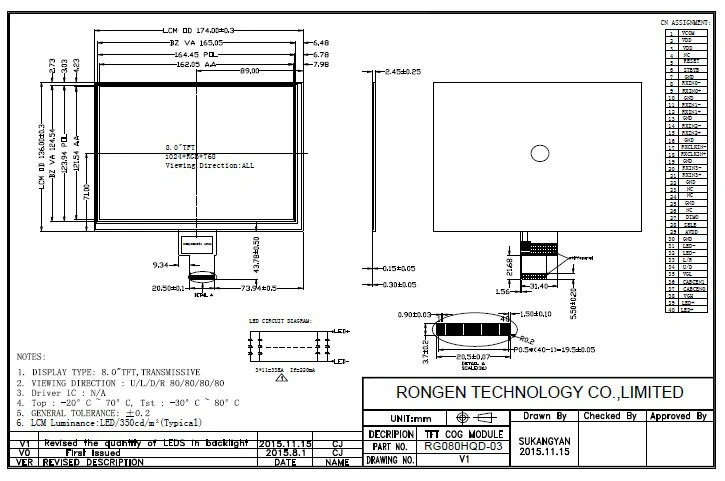

Mechanical Drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
