8 Inch 1024*600 TFT LCD Screen Car Digital LCD Monitor Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG080BQT-08
Widescreen
Widescreen
Response Time
20ms
3D
Not 3D
Interface Type
Digital
Resolution
1024*600
Luminance
450CD/M2
Active Area
176.64*99.36mm
Pin
40 Pin Soldering Type
Contrast Ratio
700:1
Module Size
192.8*116.9*6.4mm
Colors
16.7m
Operating Temperature
-20~70
Display Mode
Normally White
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
90138030
Production Capacity
100000PCS/Month
Product Description
Product Description
Double display structure: TFT Module + FPC +BL
1024 dot-source and 600 dot-gate outputs;
16.7M Color;
White LED back light;
Digital interface;
General Data List:
LCD size 8.0 inch(Diagonal)
Driver element a-Si TFT active matrix
Resolution 1024 x 3(RGB) x 600
Display mode Normally White
Dot pitch 0.1725(W) x 0.1656(H)
Active area 176.64(W) x 99.36(H)mm
Module size 192.80(W) x 116.90(H) x 6.40(D) mm Note 1
Surface treatment Plain
Color arrangement RGB-stripe
View Direction(Gray Inversion) 6:00 O' Clock
Interface Digital
Backlight power consumption 2.574W (Typ.)
Panel power consumption TBD W(Typ)
Weight 196g (Typ)
Product Picture

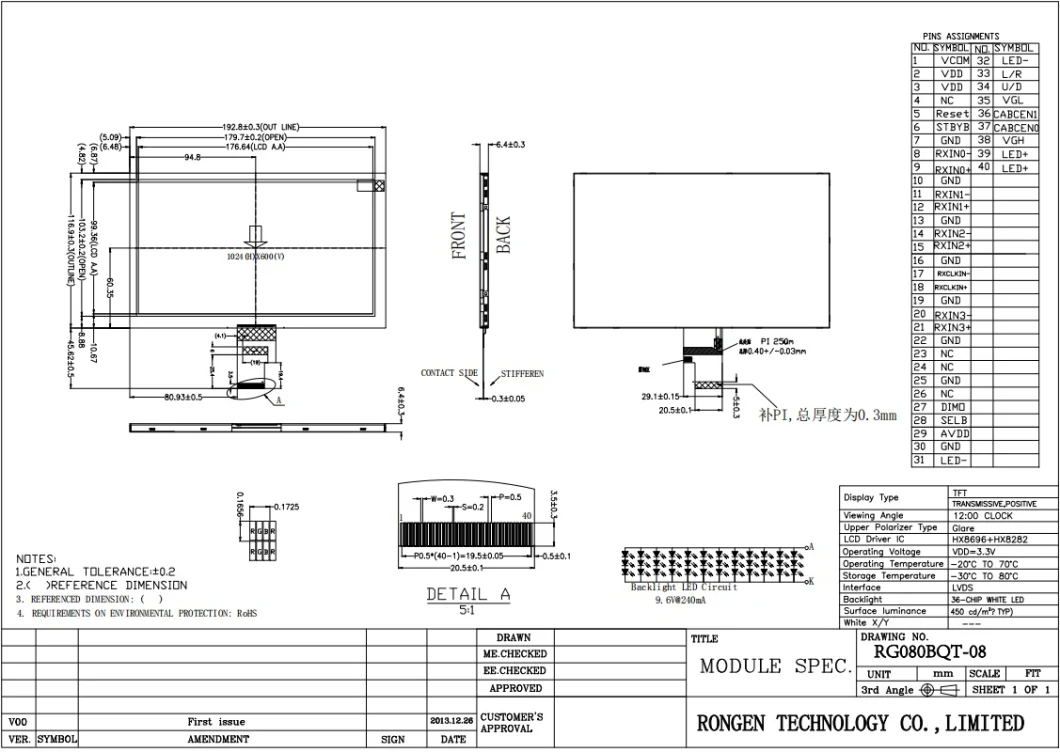

Mechanical Drawing
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Double display structure: TFT Module + FPC +BL
1024 dot-source and 600 dot-gate outputs;
16.7M Color;
White LED back light;
Digital interface;
General Data List:
LCD size 8.0 inch(Diagonal)
Driver element a-Si TFT active matrix
Resolution 1024 x 3(RGB) x 600
Display mode Normally White
Dot pitch 0.1725(W) x 0.1656(H)
Active area 176.64(W) x 99.36(H)mm
Module size 192.80(W) x 116.90(H) x 6.40(D) mm Note 1
Surface treatment Plain
Color arrangement RGB-stripe
View Direction(Gray Inversion) 6:00 O' Clock
Interface Digital
Backlight power consumption 2.574W (Typ.)
Panel power consumption TBD W(Typ)
Weight 196g (Typ)
Product Picture
Mechanical Drawing
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
