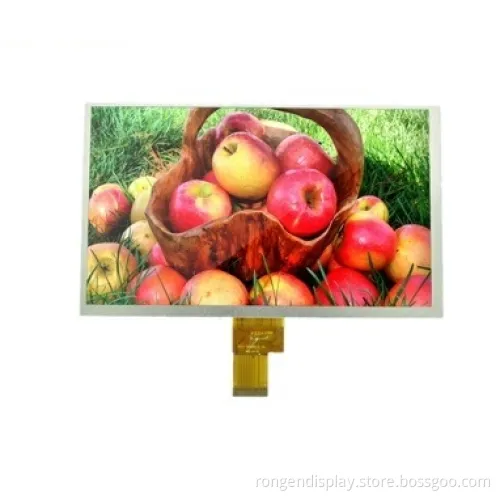

1024X600 LCD Screen 9inch 300 CD/M2 TFT LCD Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG090BBD-01
Widescreen
Not Widescreen
Response Time
25ms
3D
Not 3D
Interface Type
Lvds
Brand
Rongen
Size
9 Inch
Resolotion
1024X600
Luminance
300 CD/M2
Contrast Ratio
500:1
Active Area
196.64X114.15mm
Response Time(Ms)
25ms
Viewing Angle
65/55/65/65
Operation Temperature
-20-70, -30-80
Interface
Lvds
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100, 0000/Month
Product Description
Specification:

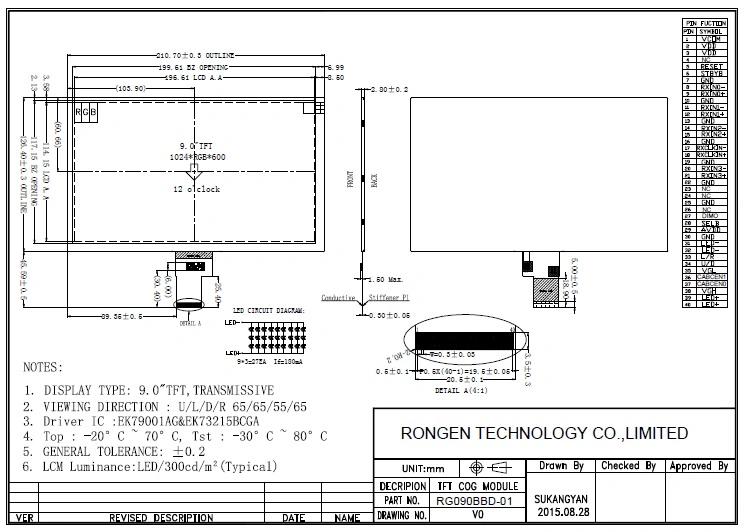

Outline Drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| LCD Type | TFT - |
| Display color | 16.7M |
| Viewing Direction | 12 O'Clock |
| Gray scale inversion direction | 6 O'Clock |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
| Active Area(W×H) | 196.61X114.15 mm |
| Number of Dots | 1024×600 dots |
| Controller | EK79001AG+EK73215BCGA - |
| Power Supply Voltage | 3.3 V |
| Backlight | 3X9-LEDs (white) pcs |
| Interface | LVDS |
Outline Drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
