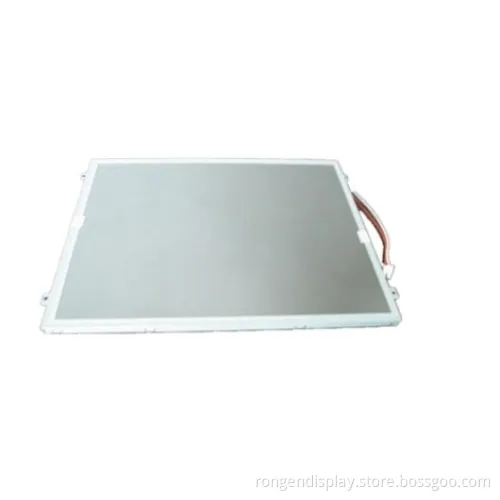

10.4 Inch 1024*768 TFT LCD Display

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG104XA02CW

Widescreen

Not Widescreen

Response Time

25ms

Not 3D

Interface Type

Lvds

Size

10.4"

Resolotion

1024*768

Luminance

400 CD/M2

Contrast Ratio

500:1

Active Area

211.2*158.4mm

Outline Size

236*174.3*7.4mm

Viewingangle

75/75/70/70 (Typ. )(Cr≥ 10)

Operation Temperature

-20 ~ 70 ° C

Electrical Interface(Data)

Lvds

Colors

262K

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

Specification:

ITEM	SPECIFICATION
Panel Size	10.4 inch(panel diagonal)
Display Area (mm)	211.2(H)×158.4(V) (10.4-inch diagonal)
Number of Pixels	1024(H) × 3(RGB) × 768(V)
Pixel Pitch (mm)	0.20625 x0. 20625
Color Pixel Arrangement	RGB vertical stripe
Display Mode	Normally white
Number of colors	262,144
Brightness(cd/m2)	400(typ.)
Response Time (Tr+Tf)	25 ms

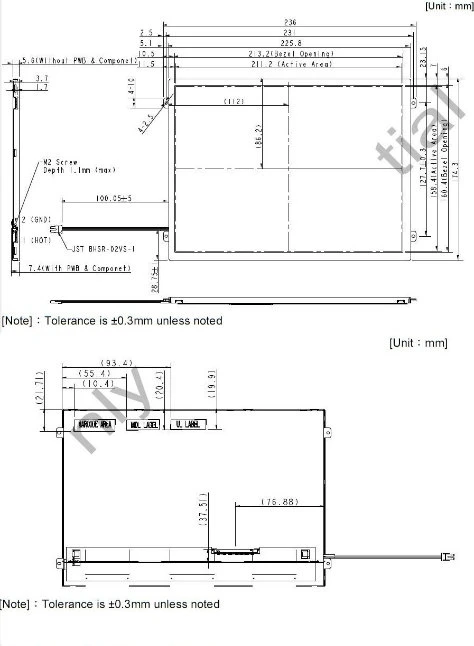

Module Size (mm)	236(W)×174.3(H)×7.4(D) (with PWB and Component)
Viewin Angle(BL on,CR>=10)	150 degree(H),140 degree(V)
Power consumption(W)	4.0W(typ) / 4.3W(max)
BL unit	LED
Electrical Interface(data)	LVDS
Viewing Direction	6 o´clock (Max contrast ratio, Gray Level Inversion)
Weight(g)	385 (g)
Surface Treament	Anti-Glare,Hardness:3H

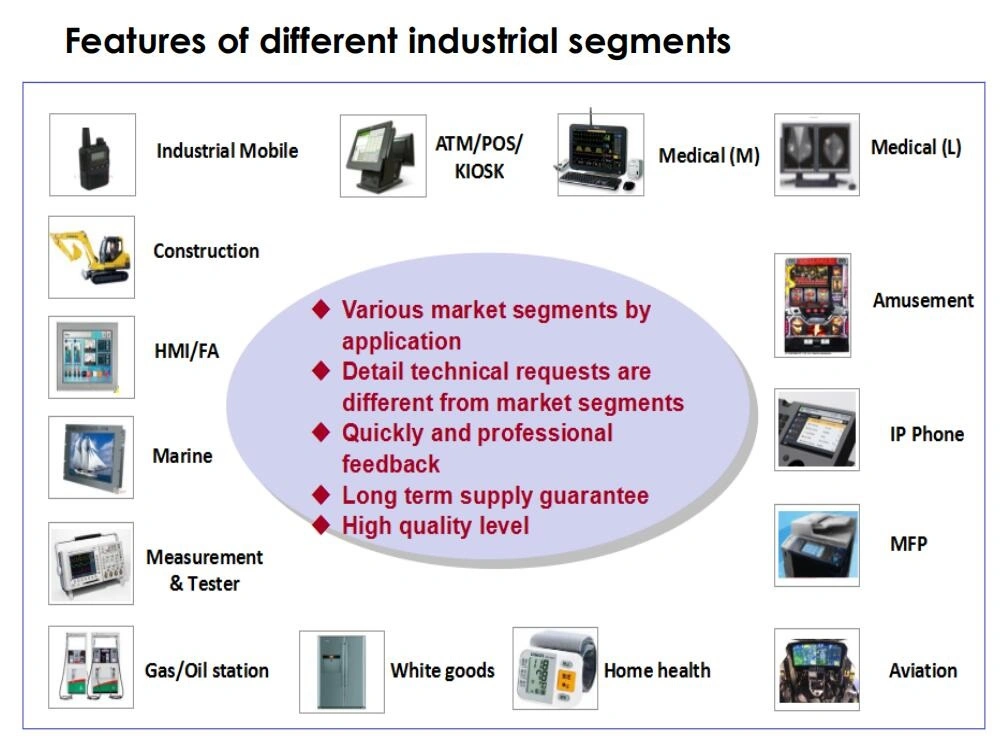

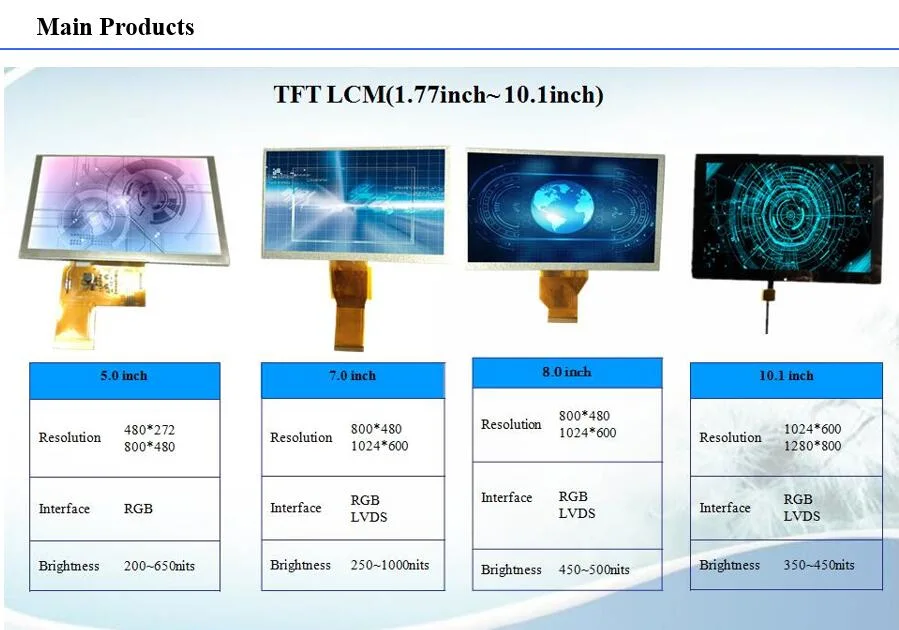

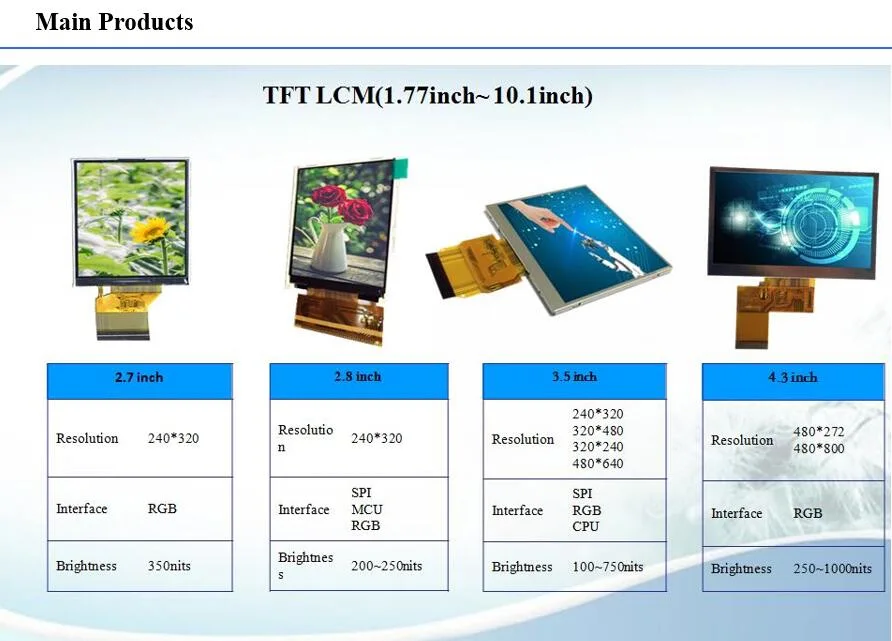

Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
