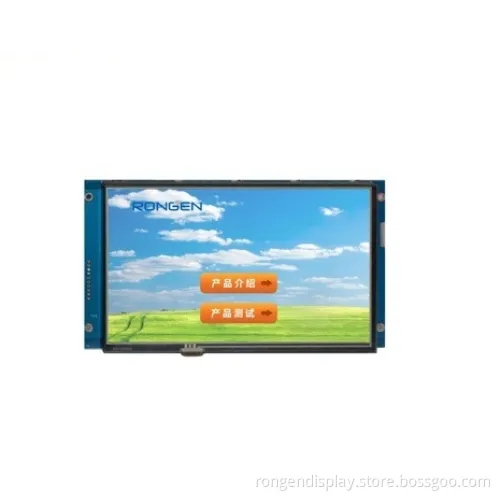

HMI/PLC All-in-One 7" LCD Module RS-232 Interface
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG8048T070L+S23V03
Response Time
25ms
3D
Not 3D
Interface Type
DVI
Resolution
800*480
Interface
RS232/RS485
Data Bus
Jeida 24 Bits
Active Area
154.08 X 85.9 mm
Viewing Size
156.7 X 89.1 mm
Outline Dimension
186X 103 X 17.6 mm
Operation Temperature
-20 ~ +70
Storage Temperature
-30 ~ +80
Colors
256/65K
Pins
40pins
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
3000/Month
Product Description
Product Description:
parameter | characteristic |
Signal Interface : | LVDS (JEIDA 24 bits) |
Touch Panel | USB resistance touch panel |
Display Mode : | Transmissive with Normally White |
Screen Size : | 7.0 inch |
Outline Dimension : | 200x 125 x 30(mm) (see outline drawing for details) |
Active Area : | 154.08x 85.92(mm) |
Number of dots : | Number of dots : |
Dot Pitch : | 0.1926x 0.179(mm) |
Pixel Configuration : | Pixel Configuration : |
Backlight : | White LED |
Viewing Direction : | 6 o'clock ( Gray scale Inversion ) (*1) |
6 o'clock ( Gray scale Inversion ) (*1) | -20 ~ +70°C |
Storage Temperature : | -30 ~ +80°C |
INTRODUCING PRODUCTS
features: |
l Built-in an LVDS converter, simple to use |
l strong anti-interference, no snow |
l 5 v power supply |
l Backlight PWM adjustable brightness |
l LED backlight,build-in DC/DC backlight IC |
l do not need to adjust the contrast can achieve the best effect of display |
l DVI line connection |
Application: |
l Instrumentation |
l Industial controller |
l Human-computer interface |
l Medical instruments |
l Data collection |
l Environment monitoring |
l Charging Point |
Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Product | Application |
Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
