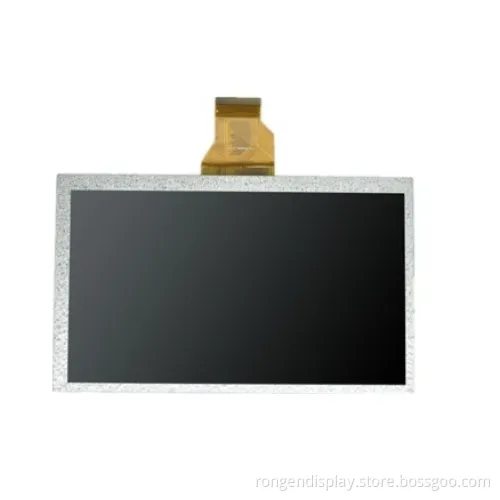

LCD Display Monitor 40 Pin Resolution 1024 X600 8 Inch
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T800MIXH-01
Widescreen
Not Widescreen
Response Time
20ms
3D
Not 3D
Interface Type
Lvds
Brand Name
Rongen
Luminance
450CD/M2
Contrast Ratio
700: 1
Resolotion
1024X600
Active Area
176.64X99.36mm
View Angle
75/75/70/75
Pins
40
Outline Dimesion
192.8X116.9X6.4mm
Interface
Lvds
Orignal
China
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100000PCS/Month
Product Description
General specification
| Item | Contents |
| LCD Type | TFT |
| Display Color | 16.7M |
| View Direction | 12 O'Clock |
| Gray Scale Inversion Direction | 6 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 192.8(W)x116.9(H)x6.4(D)mm |
| Active Area(W×H) | 176.64*99.36 mm |
| Number of Dots | 1024×600dots |
| Dot pitch | 0.0736(W)x0.207(H)mm |
| Power Supply Voltage | 3.3V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | LEDs(white) |
| Weight | |
| Interface | LVDS |
Why Choose Rongen Display?
- FOG automatical device can ensure the capacity of 1000,000 per month.
- Reliability test and full examination to ensure the high quality of the display.
- Strictly ISO quality management system.
- Mature and Professional after service.
- Various cooperation experience with big brands.
