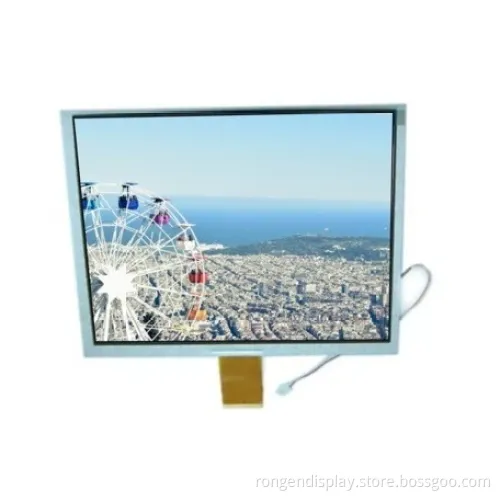

10.4 Inch 800X600 60pin TFT LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG104IQT-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
800X600
Luminance
650 CD/M2
Active Area
211.2X158.4 mm
Outline Size
228.5X175.5X5.9 mm
Back Lights
3X12LED
Interface
24bits RGB
Connector
60pin
Contrast Ratio
600:1
Operating Temperature
-20~70
Storage Temperature
-30~80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification

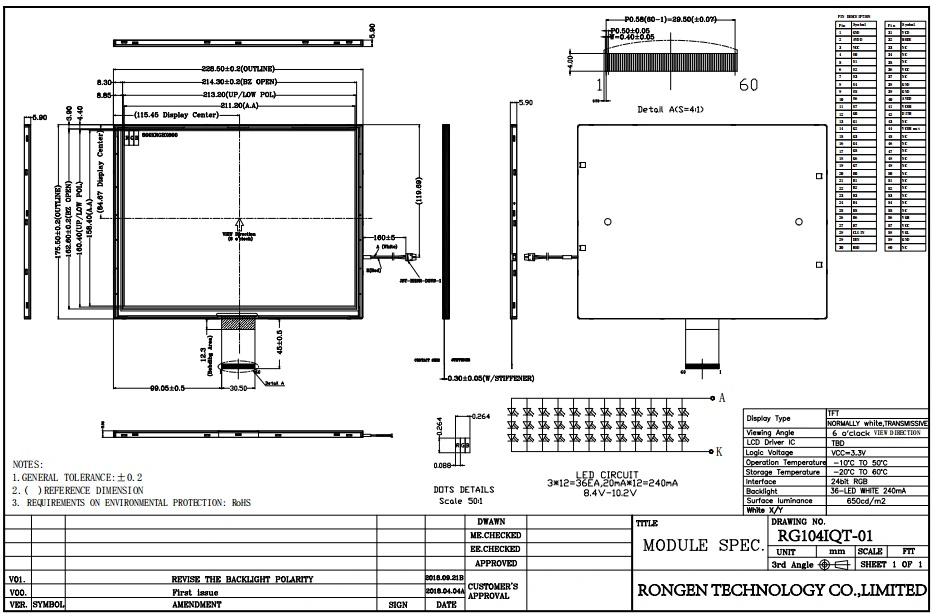

Mechanical Drawing
Product Application
| Item | Contents |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 228.5*175.5*5.9 MM |
| ACTIVE SIZE (W*H) | 211.2*158.4 MM |
| PIXEL PITCH (W*H) | 0.264*0.264 MM |
| NUMBER OF DOTS | 800*600 |
| DRIVER IC | TBD |
| INTERFACE TYPE | 24BIT RGB |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 12 O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 O'CLOCK |
| BACKLIGHT TYPE | 36-CHIP WHITE LED |
| TOUCH PANEL TYPE | WITHOUT |
Mechanical Drawing
Product Application

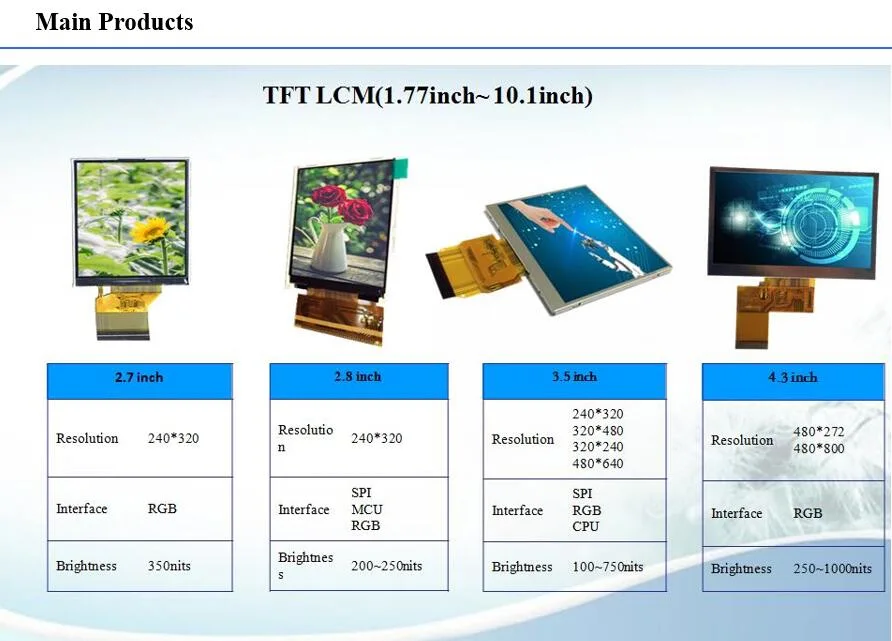

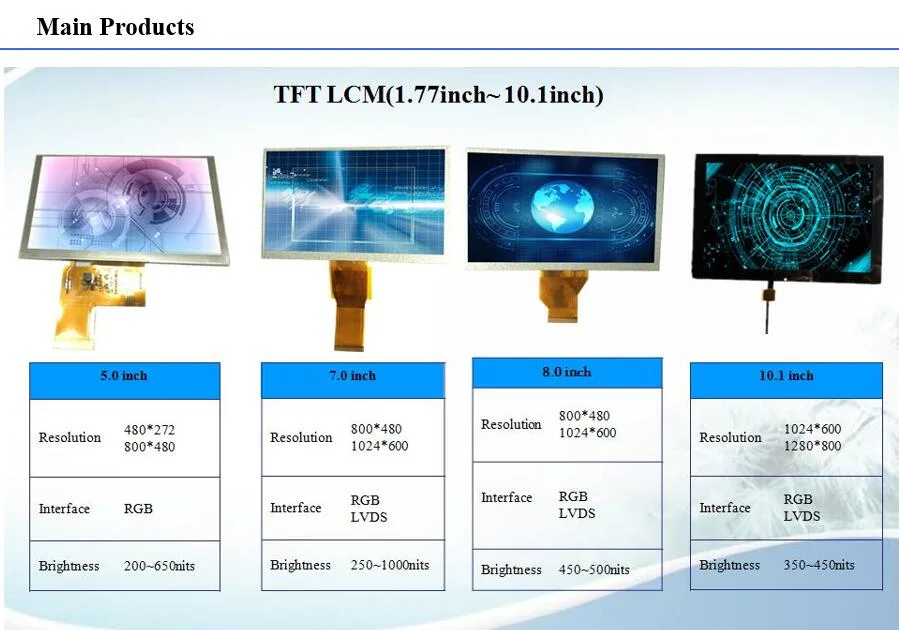

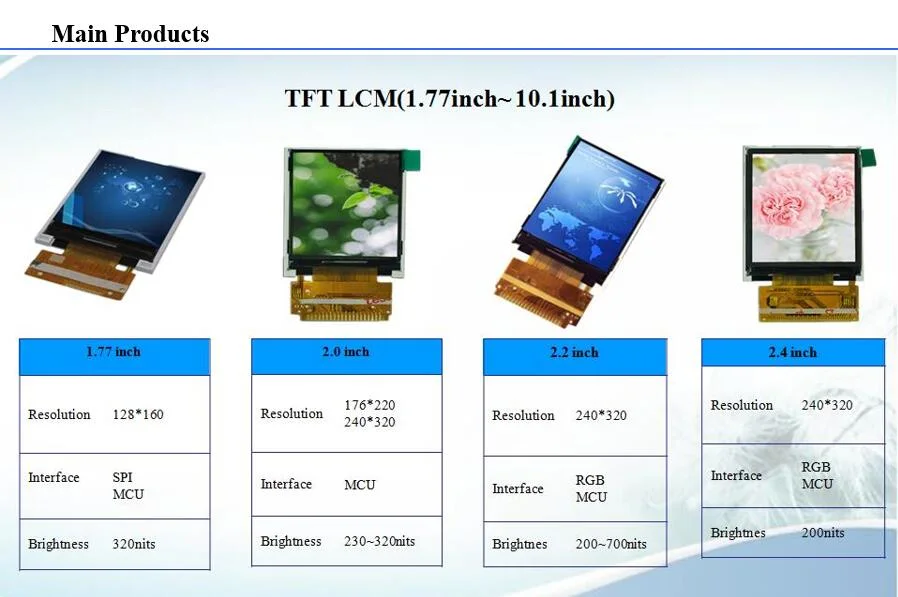

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | high luminance 3.5 inch tft lcd module 3.5'' tft lcd screen 3.5" wvga tft lcd |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
