8inch High Quality LCD Screen with Touch Panel

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

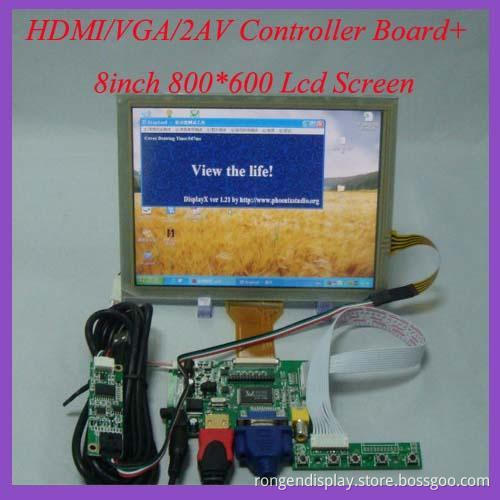

OEM 8" TFT LCD Panel module 800*600 resolution
8" TFT LCD screen with/without TP, 8 inch TFT LCM display for digital photo frame, TFT LCD manufacture

8 inch TFT LCD with high resolution(Innolux AT080TN52 V. 5)
Brand: Innolux
Screen size: 8"
Resolution: 800*600
Luminance: 190CD/m2
Contrast Ratio: 500: 1
Aspect Ratio: 16: 9

Operating Temperature: -20~60
Storage Temperature: -30~70
Pixel Pitch: 0.2025x0.2025mm (WxH)
Surface: Antiglar
Active Area: 162.0x121.5mm (WxH)
Bezel Area: 156.2x124.7 mm(WxH)
Outline Dimension: 183x141.0mm (WxH)
Outline Depth: 3.4+-0.3mm (Typ. )
Touch Panel: Without TP
Response Time: 10/15(Typ. )(Tr/Td)
Viewing Angle: 70/70/50/70(Typ. )(CR>=10)(L/R/U/D)
Interface Type: FPC
Interface Pin Pitch: 0.5mm
Interface Pins: 50pins
Backlight: LED.
