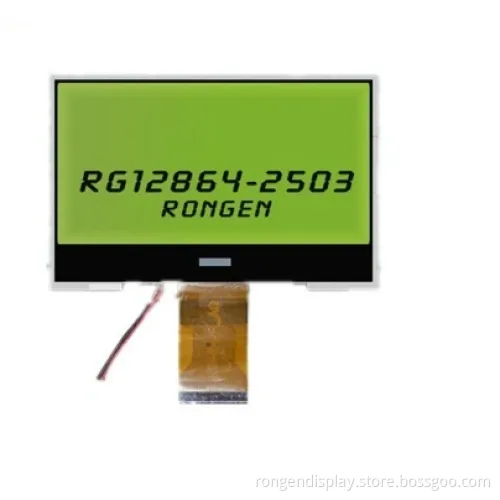

Stn 2.5inch 128*64 LCD Screen Display with Spi Interface

Stn 2.5inch 128*64 LCD Screen Display with Spi Interface

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG12864-2503

Display Technology

STN

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven

LCD Drive Mode

Static Drive LCD Module

Customized

Number of Dots

128*64

View Angle Direction

12’clock

Active Area

56.32X 28.14mm

Outline Dimension

66.8X43.5X 5.1mm Max.

Data Bus

Spi

Operating Temperature

-20+70

Storage Temperature

-30~+80

Backlight

LED

Controller IC

UC7538

Driver Mode

1/65 Duty 1/9 Bias

Transport Package

Standard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

10000/Month

Product Description

Specification

Screen size	2.5"(Diagonal)
Display color	Black
Background color	Yellow Green
Type	STN
View angle direction	12'clock
Driver mode	1/65 DUTY 1/9 BIAS
Backlight	LED
Controller IC	UC7538
Data Bus	SPI
Operation:-20 oC ---- +70oC	-20 oC ---- +70oC
Storage	-30 oC ---- +80oC
Number of Dots	128*64
Dot size	0.42 x 0.42mm
Dot pitch	0.44x 0.44mm
Viewing size	61.0x 31.5mm
Active area	56.32x 28.14mm

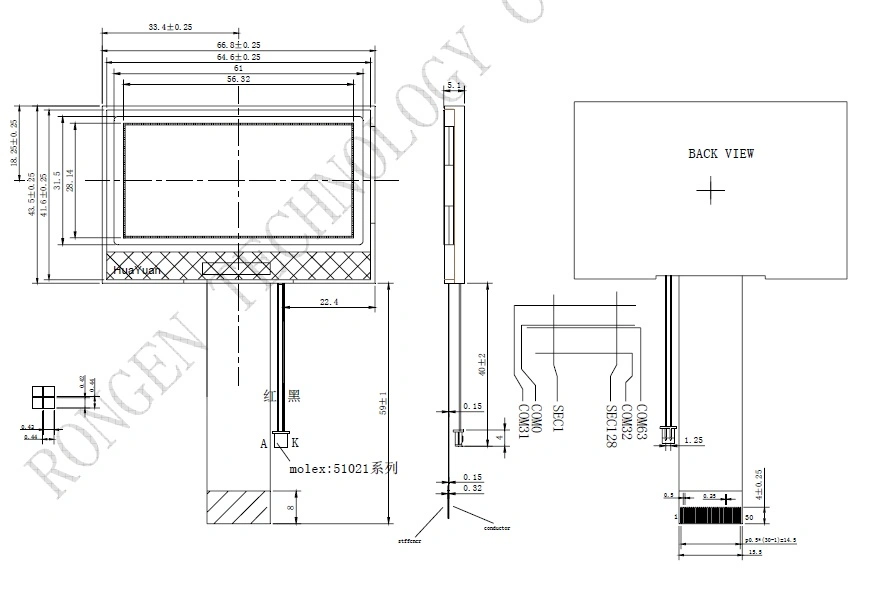

Outline dimension	66.8x43.5x 5.1mm Max.
