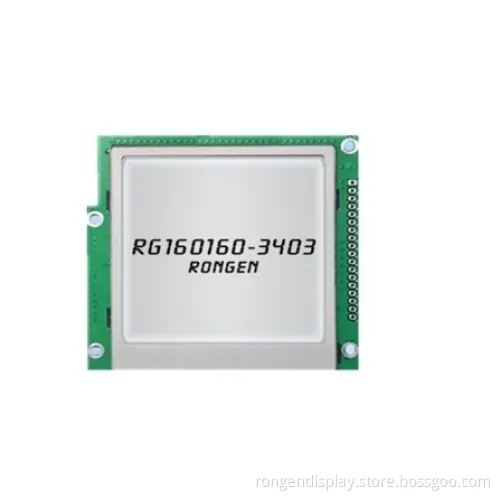

Stn 3.4inch LCD Module 160*160 Resolution LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG160160-3403
Display Technology
FSTN
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Number of Dots
160*160
View Angle Direction
6’clock
Active Area
54.38 X54.38mm
Outline Dimension
82.20 X 77.50 X 8.20max.
Operating Temperature
-25~+70
Storage Temperature
-30~+80
Backlight
LED
Driver IC
UC1698
Viewing Size
60.0 X60.0mm
Driver Mode
1/160 Duty 1/10 Bias
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
Specification
| Screen size | 3.4"(Diagonal) |
| Display color | Black |
| Background color: | Grey |
| Type | FSTN |
| View angle direction | 6'clock |
| Driver mode | 1/160 DUTY 1/10 BIAS |
| Backlight | LED |
| Driver IC | UC1698 |
| Data bus | 8 bit |
| Operation Temperature | -25oC ---- +70oC |
| Storage Temperature | -30oC ---- +80oC |
| Number of Dots | 160 x 160 |
| Dot size | 0.32x 0.32mm |
| Dot pitch | 0.34 x 0.34mm |
| Viewing size | 60.0 x60.0mm |
| Active area | 54.38 x54.38mm |
| Outline dimension | 82.20 x 77.50 x 8.20Max. |

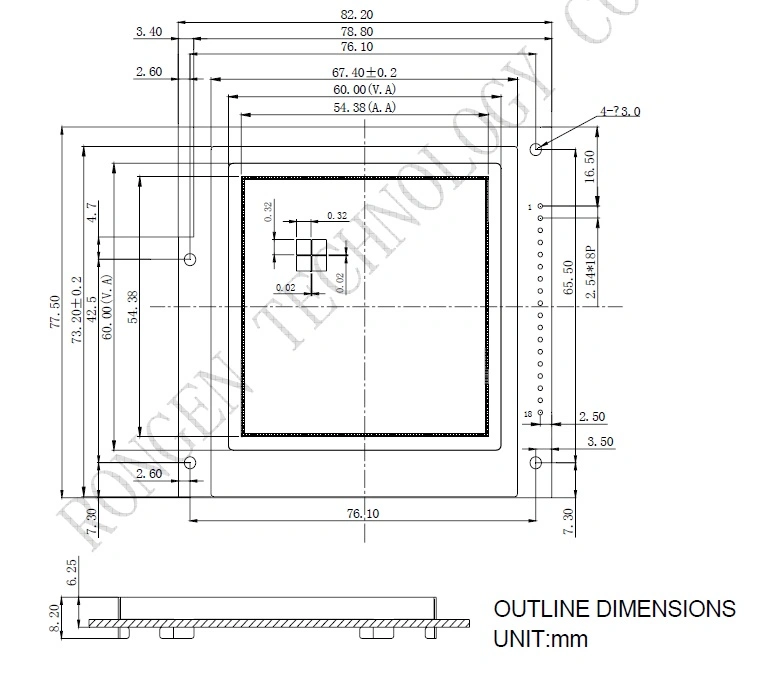

Outline drawing
