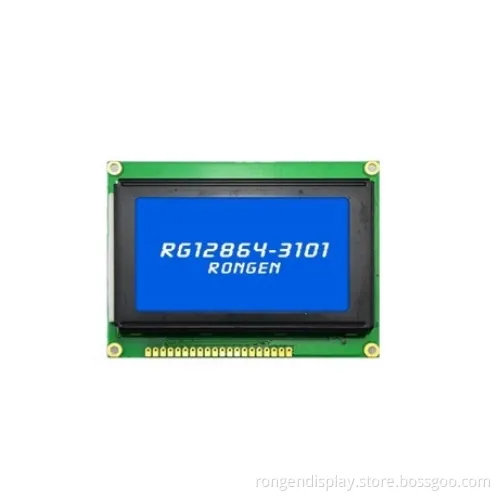

3.1inch Stn LCD Module 128*64 Resolution

3.1inch Stn LCD Module 128*64 Resolution

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG12864-3101

Display Technology

STN

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven

LCD Drive Mode

Static Drive LCD Module

Customized

Number of Dots

128*64

Driver Mode

1/64 Duty 1/9 Bias

Backlight

LED

Control IC

Sbn6400g,Sbn0064G or Compatible IC

Data Bus

8 Bit

DOT Size

0.48 X 0.48mm

DOT Pitch

0.52 X 0.52mm

Viewing Size

72.0 X 39.0mm

Active Area

66.52 X 33.24mm

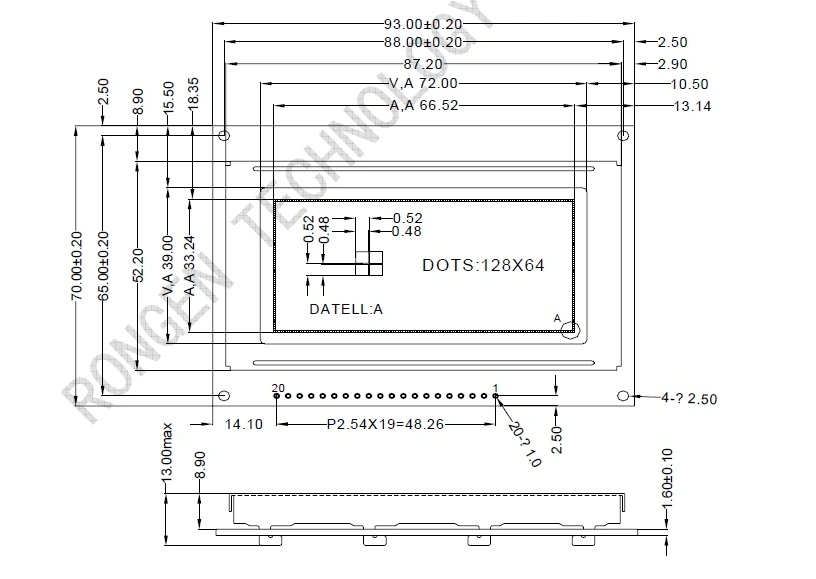

Outline Dimension

93.0 X 70.0 X 12.5mm Max.

Transport Package

Standard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

10000/Month

Product Description

Specification

Screen size	3.1"(Diagonal)
Display color	White
Background color	Blue
Type	STN
View angle direction	6'clock
Driver mode	1/64 DUTY 1/9 BIAS
Backlight	LED
Control IC	SBN6400G,SBN0064G or compatible IC
Data bus	8 bit
Operation Temperature	-20 oC ---- +70oC
Storage Temperature	-30 oC ---- +80oC
Number of Dots	128 x 64
Dot size	0.48 x 0.48mm
Dot pitch	0.52 x 0.52mm
Viewing size	72.0 x 39.0mm
Active area	66.52 x 33.24mm
Outline dimension	93.0 x 70.0 x 12.5mm Max.
