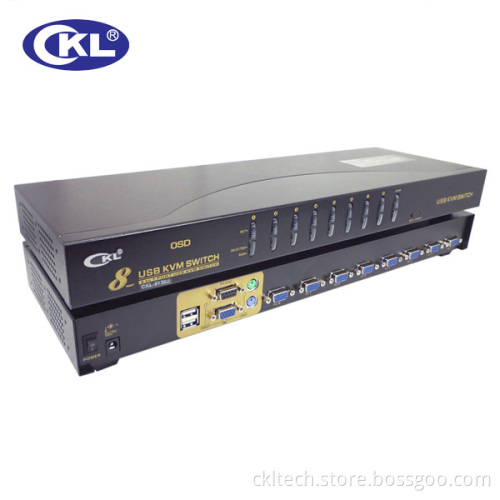

Hight Quality 8 Port USB Kvm Switch

1. Introduction
Thanks for your purchase of Combo KVM Switch! You now have a high quality, durable system that will enable you to control 2/4 Host computers and/or servers by using PS/2 and/or USB Connectors from one console (PS/2 & USB Mouse, PS/2 & USB Keyboard, and Monitor).
1.1 Features
1. Console your Keyboard/Mouse via either way of PS/2 and/or USB arbitrarily.
2. Complex connections with PCs via either way of PS/2 and/or USB arbitrarily.
3. Controls 8/16 computers from a single console (Keyboard/Mouse) over PS/2 and/or USB connections.
4. Supports Windows, Linux, Mac OS9/OSX, Sun Micro systems.
5. On-Screen-Display (OSD) & Cascade Chain functions.
-OSD is intuitive menus driven for quick and efficient navigation.
-3 level cascades: Up to 3 levels; Control up to 64/256/4096PCs, from a single console; Cascaded units don't need special configuration.
6. Emulates a PS/2 or USB keyboard on each PC to allow your computers to boot normally without a keyboard error.
7. Supports hot pluggable. All devices connected to the KVM can be added or removed any time, no need turn off the PC.
8. Supports 3 switch modes:
(1) Push Button, (2) Hot-Keys on the keyboard.
(3) Menu driven OSD (On Screen Display).
9. Supports Auto-Scan function to switch video automatically among computers in preset intervals sequentially by OSD menu driven.
10. Supports LED display for PC and/or server status monitoring.
11. Supports VGA resolutions up to 2048× 1536 @ 60Hz.
12. Supports Beeper during switching enabled.
13. Powered with external power adaptor connection.
14. Fully compliant with the USB 1.1/2.0 specification.
15. Rack Mountable in 19- (1U).
1.2 Package Contents
The product you purchased should contain the following equipment and accessories:
1.8-Port or 16-Port Combo KVM Switch 1pcs. 2. User Manual 1 unit.
3. Power adaptor 1 unit 4. Rack Mount Kit 2pcs
5. Combo custom 4-in-1 cables 8pcs or 16pcs 6. Cascaded cable 1 piece (9138UP/9116UP)
7. Warranty card 1pcs
