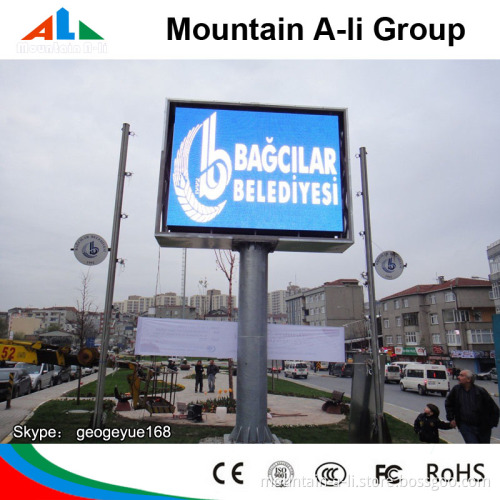

P16mm Double Sides LED Display Screen, LED Two Sides Screen

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China(Mainland)
Payment Type:	T/T, Western Union

Product Description

The specifications of modules

ItemsParameter
Product Model: P16 full color module
Module size: 256mm*256mm
Pixel pitch: P16 mm
Pixel density: 3906dots/m2
Pixel configuration: RGB
Module resolution: 16dots(W)*16dots(H)
Module maximum power consumption: 35W
Module Thickness: 33CM
Module Weight: 1kg
Driving method: Constant Current Driving
Scanning method: Static Scaning
Interface: HUB40
Brightness: ≥ 7500cd/m2

The specifications of cabinets

Cabinet size: 1024mm*1024mm
Module quantity: 16
Power supply: 5V/40A 5V/60A
Cabinet resolution: 64*64dots
Optimal viewing distance: 10M~50M
Optimal viewing angle: 160° (W) 120° (H)
RHWorking temperature: Work: -20º C~+50º C
System operating humility: 10%-95%

The specifications of power supplier

Operating Voltage: AC220V± 10%
Average power consumption: 350W/H
Maximum power consumption: ≤ 800W/
Electric current: ≤ 20mA(single LED)

The specifications of control card
Control Panels: Pentium4 or above
Operating system: WIN98/2000/NT/XP
Control model: Synchronization control

The specifications of the main technical parameters

Driving device: IC Constant Current Driving
Refresh rate: ≥ 600HZ
Grey scale: RGB Each 256, can display 16.7M colors)
MTBF: ≥ 9000hours
Power switch: Automatic Switch
Display Mode: 800*600/1024*768/1280*900
