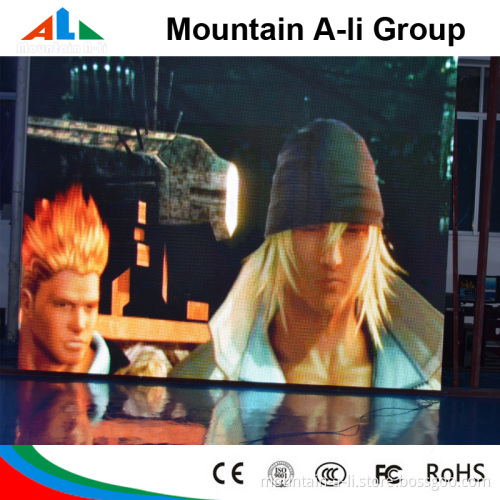

P6 Advertising Full Color Advertising LED Outdoor Screen

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China(Mainland)
Payment Type:	T/T, Western Union

Product Description

The specifications of modules

Items:Parameter

Product Model: P6 Full Color Led Module

Module size:192mm*96mm

Pixel pitch: 6mm

Pixel density: 27777dots/m2

Pixel configuration:RGB 3 in 1

Module resolution:32dots(W)*16dots(H)

Module maximum power consumption:20W

Module Thickness:2.7CM

Module Weight:0.4kg

Driving method:Constant Current Driving

Scanning method:1/8 scan

Interface:HUB75B

Brightness: ≥7000cd/m2

The specifications of cabinets

Cabinet size:768mm x 768mm

Module quantity:32pcs

Power supply:5V/40A 5V/60A

Cabinet resolution: 128*128dots

Optimal viewing distance:5M~50M

Optimal viewing angle:160°(W) 120°(H)

RHWorking temperature:(Work :-20ºC~+50ºC)

System operating humility:10%-95%

The specifications of power supplier

Operating Voltage:AC220V±10%

Average power consumption:350W/H

Maximum power consumption:≤600W/

Electric current :≤20mA(single LED)

The specifications of control card

Control Panels: Pentium4 or above

Operating system: WIN98/2000/NT/XP

Control model:Synchronization with PC

The specifications of the main technical parameters

Driving device:IC Constant Current Driving

Refresh rate:≥600HZ

Grey scale:RGB Each 256, can display 16.7M colors)

MTBF:≥9000hours

Power switch:Automatic Switch

Display Mode:800*600/1024*768/1280*900
