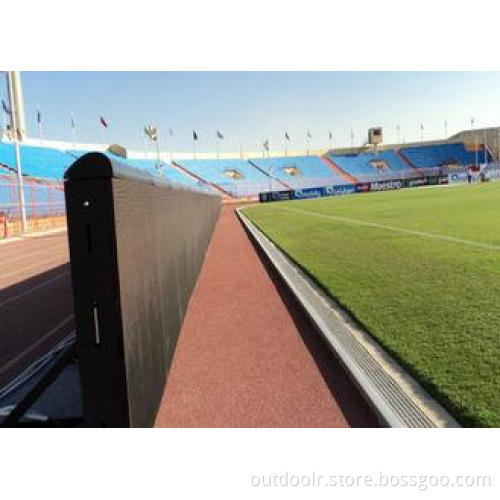

Electronic p16 Football Perimeter programmable LED signs Advertising LED Display Billboard
p16 Football Perimeter programmable LED signs which is designed and continuously improved by our professional staff,is the most mature led video display of outdoor product series. IP65 rating outdoor led display board products that deliver high brightness and contrast ratio level with unequalled image quality weigh less,save power and withstand the adverse weather conditions.
Feature :
1. Weather resistance:
IP65 rating delivers best waterproof effect that ensures our product's stable broadcasting in harshest weather condition.
2. World-class image quality:
Strict system control and pixel to pixel correction make the image smooth and uniformity.
3. System flexibility:
Able to show a variety of content of video, animation, graphic and so on.
4. Service facility:
Modular design makes module individual and can fix easily without affecting others
p16 Football Perimeter programmable LED signs
| Item | Techinical Specifications | ||||
| Pixel Pitch | 16mm | ||||
| LED Configuration | DIP346 (1R1G1B) | ||||
| Pixel Density | 3906pixels/sq.m | ||||
| Module Size | 256mm*128mm | ||||
| Module Resilution | 16pixel*8pixel | ||||
| Cabinet Size | 1024mm*1024mm | ||||
| Cabinet Resolution | 64pixels*64pixels | ||||
| Cabinet Material | Iron/Aluminum | ||||
| Cabinet weight | 50kg/sqm or 40kg/sqm | ||||
| Brightness | 8500cd/sqm | ||||
| Colour temperature | 3500K-9500K(adjustable) | ||||
| Viewing Angle | H:110°/V:55° | ||||
| Brightness Uniformity | ≥97% | ||||
| Brightness Adjustment | Manual/Auto/Programmable | ||||
| Ave. Power consumption | 240 W/sqm | ||||
| Max. Power consumption | 800W/sqm | ||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | ||||
| Output Voltage | 5V,40A | ||||
| Best Viewing Distance | 16m~200m | ||||
| Contrast ratio | 5000:1 | ||||
| Frame rate | 50/60 Hz/sec | ||||
| Refresh rate | ≥1200Hz | ||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | ||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||
| Protection Level | IP65 | ||||
| Life-span | 100,000 hours | ||||
| MTBF | 10,000 hours | ||||
| Malfunction dot rate | < 0.0001 | ||||
| Storage Temp/Humidity | -30~+60℃/10~90%RH | ||||
| Operating Temp/Humidity | -20~+50℃/10~90%RH | ||||
| Drive Mode | Static contant current | ||||
| Control System | Synchronous/Asynchronous/Wifi/3G Wireless for choice | ||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | ||||
Advantage :
1. Advanced web-based setup, monitoring and control
2. Fiber-optic data transmission to the display
3. Image feeds delivered in both standard and high-definition formats.
4. Fan less operation ensures quiet, yet powerful performance.
5. Engineered for ease of service with top, back and front access. Easy top, back and front service access.
