RGB High Definition Electronic display advertising LED Bill
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen ,China |
|---|

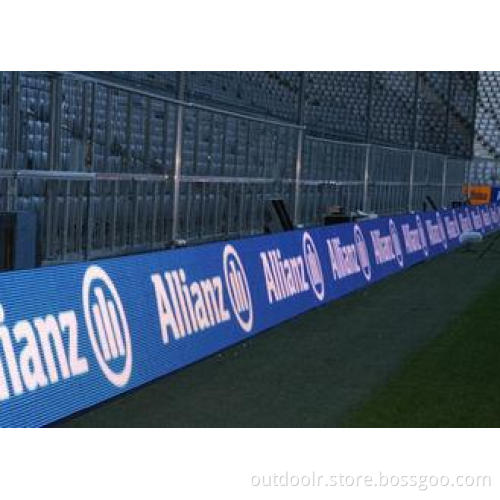

Electronic p16 outdoor Advertising LED football perimeter display RGB High Definition
p16 outdoor Advertising LED football perimeter display , which is designed and continuously improved by our professional staff,is the most mature led video display of outdoor product series. IP65 rating outdoor led display board products that deliver high brightness and contrast ratio level with unequalled image quality weigh less,save power and withstand the adverse weather conditions.
Feature :
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
| p16 outdoor Advertising LED football perimeter display | |||||
| Item | Techinical Specifications | ||||
| Pixel Pitch | 16mm | ||||
| LED Configuration | DIP346 (1R1G1B) | ||||
| Pixel Density | 3906pixels/sq.m | ||||
| Module Size | 256mm*128mm | ||||
| Module Resilution | 16pixel*8pixel | ||||
| Cabinet Size | 1024mm*1024mm | ||||
| Cabinet Resolution | 64pixels*64pixels | ||||
| Cabinet Material | Iron/Aluminum | ||||
| Cabinet weight | 50kg/sqm or 40kg/sqm | ||||
| Brightness | 8500cd/sqm | ||||
| Colour temperature | 3500K-9500K(adjustable) | ||||
| Viewing Angle | H:110°/V:55° | ||||
| Brightness Uniformity | ≥97% | ||||
| Brightness Adjustment | Manual/Auto/Programmable | ||||
| Ave. Power consumption | 240 W/sqm | ||||
| Max. Power consumption | 800W/sqm | ||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | ||||
| Output Voltage | 5V,40A | ||||
| Best Viewing Distance | 16m~200m | ||||
| Contrast ratio | 5000:1 | ||||
| Frame rate | 50/60 Hz/sec | ||||
| Refresh rate | ≥1200Hz | ||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | ||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||
| Protection Level | IP65 | ||||
| Life-span | 100,000 hours | ||||
| MTBF | 10,000 hours | ||||
| Malfunction dot rate | < 0.0001 | ||||
| Storage Temp/Humidity | -30~+60℃/10~90%RH | ||||
| Operating Temp/Humidity | -20~+50℃/10~90%RH | ||||
| Drive Mode | Static contant current | ||||
| Control System | Synchronous/Asynchronous/Wifi/3G Wireless for choice | ||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | ||||
1. Weather resistance:
IP65 rating delivers best waterproof effect that ensures our product's stable broadcasting in harshest weather condition.
2. World-class image quality:
Strict system control and pixel to pixel correction make the image smooth and uniformity.
3. System flexibility:
Able to show a variety of content of video, animation, graphic and so on.
4. Service facility:
Modular design makes module individual and can fix easily without affecting others
