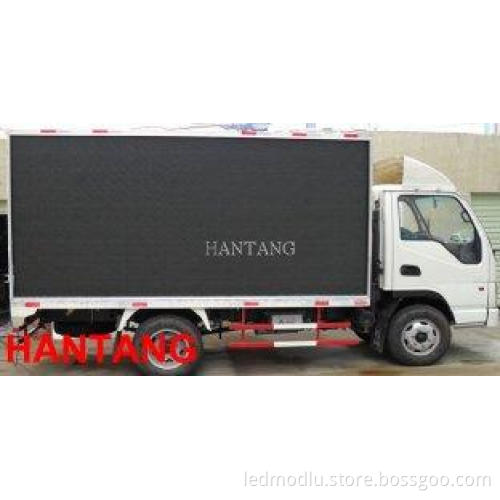

P10 Moblie LED Display

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA

Product Description

P10 Moblie LED Displays

Fetures:

1) Large Viewing Angle
2) Energy -Saving, Easy Operation
3) High Reflesh Rate
4) High Quality

Technical Parameters of P10 full color outdoor LED display
Usage	Outdoor
Pitch(mm)	10
Pixel Constitute	1R1G1B
LED--Opto+Silan	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(450-500mcd) G:Ⅳ(1600-1800mcd) G:Ⅳ(350-400mcd)
Pixel Density(dots/㎡)	10000
Module Size(mm)	160*160
Module Resolution	16*16
Recommended Minimum Viewing Distance(m)	>=10
Viewing Angle(°C)	V40, H110
Average Power Consumption	1000W/㎡
Brightness (white balance)	5000cd/㎡
Size of cabinet(mm)	640640150
Weight of cabinet	50kg/㎡
Cabinet pixels(dot)	64*64
Frame frequency	≥60Hz
Refresh rate	≥360Hz
Grey color	≥16.7M
Brightness adjustment	256 grade manual, 8 grade automatic
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-30 °C ~+60°C
Driving Voltage	5VDC
Working Voltage	110 to 220VDC
Scan Mode	1/4
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
