Intel G41 motherboard DDR3 Socket 478
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
2 PCIE, PCI
3 DDR3
4 2 SATA + 1 IDE
5 VGA, LPT, COM, LAN, RJ45, USB2.0
Intel G41 motherboard DDR3 Socket 478 G41 Socket 478 Motherboard Specification:
Model | G41LM4 |
CPU | Intel® Socket 478 for Celeron™/Pentium4™/Celeron™ D Processors |
Chipset | Intel® G41 + NH82810GB (ICH7) |
Memory | 2 x DIMM, Max. 8GB, DDR3 1333/1066 Hz |
Dual Channel Memory Architecture | |
Graphic | Integrated Graphics Processor |
Expansion Slots | 1 x PCIe 2.0 x16 |
| |
2 x PCIe 2.0 x1 | |
Storage | 2 x SATA 3Gb/s port(s) |
LAN | 10/100M |
Audio | AC'97 |
USB Ports | 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board) |
Back I/O Ports | 1 x PS/2 keyboard (purple) |
1 x PS/2 mouse (green) | |
1 x LAN (RJ45) port(s) | |
2 x USB 2.0 | |
1 x VGA | |
1 x COM | |
1 x LPT | |
3 x Audio jack(s) | |
Internal I/O Ports | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
2 x SATA 3Gb/s connector(s) | |
Accessories | User's manual |
I/O Shield | |
SATA 3Gb/s cable(s) | |
Form Factor | ATX Form Factor |
|

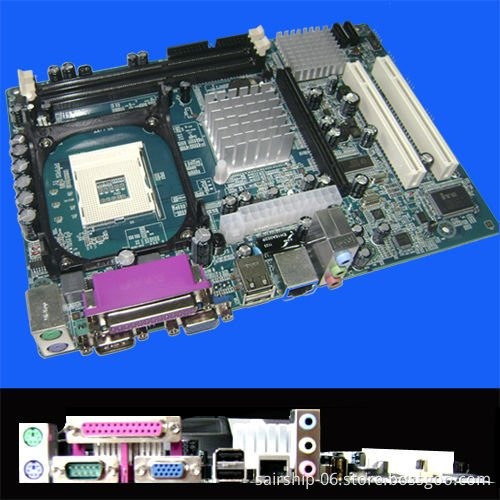

G41 Socket 478 Motherboard Picture:
