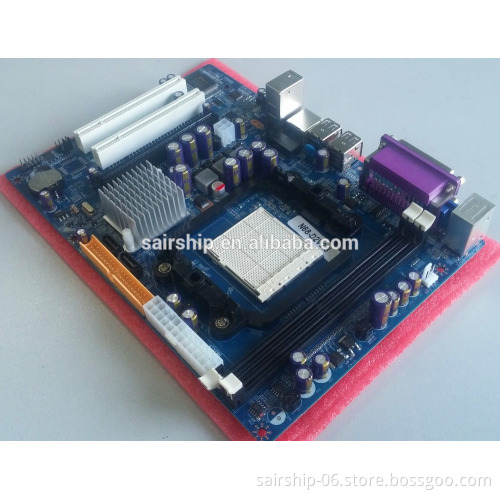

socket am2 ddr2 motherboards for core i3/i5/i7 with Nvidia MCP61P chipset

Model No.

N68-D2

Chipset

Nvidia MCP61P

CPU Support

AM2, AM2+ ,AM3 processors

Memory Support

2* DIMM slots, dual-channel DDR2 553/667/800MHz, up to 4GB

Storage Support

2 x SATA 2.0 ports, 1xIDE

Expansion Slots

1 PCI-Ex8, 2 PCI

LAN

Realtek RTL8105E 100/10 Mbps (optional RTL8111E 1000/100/10 Mbps)

Audio

Realtek 662 HD Audio

Back Panel I/O ports

1 x VGA

4 x USB2.0

1 x LPT

3 x Audio jacks

2 x PS/2

1 x LAN(RJ45) port

On-Board connectors

2 x USB 2.0 connector supporting additional 4 x USB 2.0 ports

1xFront panel audio connector

1x3-pin CPU fan connector

1x24-pin ATX power connector

1x4-pin ATX 12V power connector

1xFront panel connector, 1xSpeaker connector,1xCOM connector

Form actor

17cm*24cm

N68-MIX

AM2 ddr2+ddr3 combo motherboard with Nvidia MCP61P chipset

•Chipset Nvidia MCP61P

•Support AM2, AM2+ ,AM3 processors

•1 DDR2 slot + 1 DDR3 slot, RTL8105E 100/10 Mbps, Realtek 662 HD Audio

•8xUSB(4 expansion) 1xPCIEX8 1xPCI 2xSATA 1xIDE 1xVGA 1xCOM 1xLAN 1xPS/2
